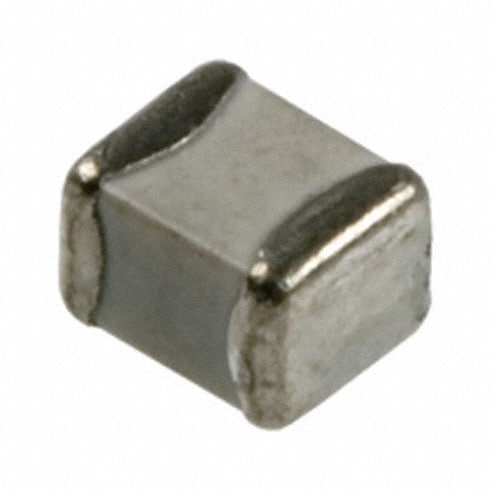

SQCAEM100JAJME Kyocera AVX SQCAEM100JAJME is a 10 pF ±5% 150V surface mount MLCC capacitor in SQCA (0605) case. Designed for RF and microwave applications with high Q and ultra low ESR.
Mfr Part #:

SQCAEM100JAJME

Available from 1 distributors
Mfr Name: Kyocera AVX
Kyocera AVX
Kyocera AVX SQCAEM100JAJME is a 10 pF ±5% 150V surface mount MLCC capacitor in SQCA (0605) case. Designed for RF and microwave applications with high Q and ultra low ESR.
✓ Total Stock: 4,173 pcs

SQCAEM100JAJME Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
4,173 pcs
On Request
4173 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SQCAEM100JAJME Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
Features
Length
Mounting Type
Operating Temperature
Package / Case Code
Tape & Reel
Temperature Coefficient
Termination Style
Thickness (Max)
Tolerance
Voltage
Width
View Similar Products (0)

SQCAEM100JAJME Description

Short technical summary and product information.

The Kyocera AVX SQCAEM100JAJME is a surface mount multilayer ceramic capacitor (MLCC) from the SQ series, specifically designed for RF and microwave applications. It offers a nominal capacitance of 10 pF with a tolerance of ±5% and a DC voltage rating of 150V. The component features a temperature coefficient of +90±20 ppm/°C (M code), ensuring stable performance across its operating temperature range of -55°C to +125°C.



This capacitor is housed in an SQCA case size (0605) with dimensions of 1.40 mm length and 1.40 mm width, and a maximum thickness of 0.57 mm. It is designed for surface mount assembly and is supplied on tape and reel compliant with EIA RS481. The termination finish is 100% Tin, making it RoHS compliant.



Key electrical characteristics include high Q, low loss, and ultra low ESR, making it suitable for RF power amplifiers, low noise amplifiers, filter networks, and MRI systems. The SQ series is known for its high self-resonance and reliability in high-frequency circuits.

SQCAEM100JAJME Quick Information

Product Type: MLCC Capacitor
Series: SQCA
Canonical Name: Kyocera AVX SQ Series 10 pF ±5% 150V MLCC Capacitor
Subcategory: MLCC

SQCAEM100JAJME Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: No

SQCAEM100JAJME Features

  • 10 pF capacitance with ±5% tolerance.
  • Rated for 150V DC operation.
  • High Q and ultra low ESR design.
  • SQCA (0605) surface mount package.
  • RoHS compliant with 100% Tin termination.

SQCAEM100JAJME Applications

  • Ideal for RF power amplifier circuits.
  • Used in low noise amplifier designs.
  • Suitable for filter network applications.
  • Applied in MRI system electronics.

SQCAEM100JAJME FAQs

5 frequently asked questions generated from this part’s specifications.
What is the capacitance and tolerance of SQCAEM100JAJME?

The capacitance is 10 pF with a tolerance of ±5%.

What is the voltage rating of this capacitor?

The DC voltage rating is 150V.

What is the temperature coefficient of SQCAEM100JAJME?

The temperature coefficient is +90±20 ppm/°C (M code).

What is the package size and mounting type?

The package is SQCA (0605) and the mounting type is Surface Mount, MLCC.

What are the key features of this capacitor?

Key features include High Q, Low Loss, and Ultra Low ESR, making it suitable for RF and microwave applications.
