| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
This Vishay Dale SQ7415AENW-T1_GE3 is a P-Channel MOSFET designed for demanding applications. It features a maximum drain-source voltage of 60V and can handle a continuous drain current of 16A at 25°C case temperature.
The MOSFET offers low on-resistance, with a maximum of 65mOhm at 5.7A and 10V Vgs. It also has a gate charge of 38nC at 10V Vgs and an input capacitance of 1385pF at 25V Vds.

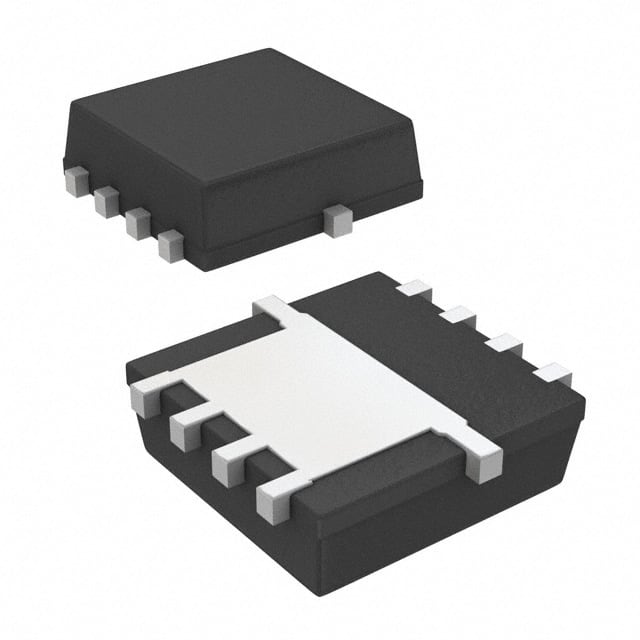

Operating across a wide temperature range from -55°C to 175°C, this device is suitable for various environmental conditions. It is packaged in the compact PowerPAK 1212-8 surface-mount package, which offers low thermal resistance.
The SQ7415AENW-T1_GE3 is AEC-Q101 qualified, indicating its suitability for automotive applications. It also features wettable flank terminals for improved solder joint inspection.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.56 | $2.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The minimum drain-source breakdown voltage is -60V at VGS = 0V, ID = -250µA.
The maximum continuous drain current is 16A at TC = 25°C and 11A at TC = 125°C.
The maximum RDS(on) is 65mOhm at 5.7A drain current and 10V gate drive, and 90mOhm at 3.3A and 4.5V gate drive.
It is available in a PowerPAK 1212-8 surface-mount package.
The operating junction and storage temperature range is -55°C to +175°C.
The maximum gate threshold voltage is 2.5V at a drain current of 250µA.
