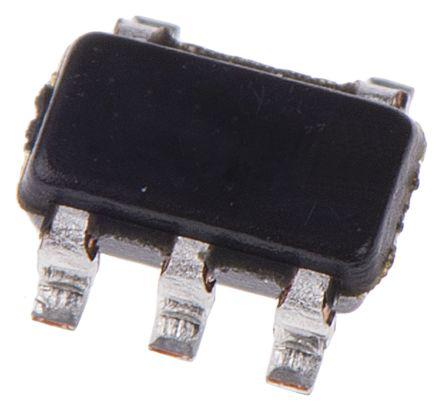

SPX5205M5-L-5-0/TR The MaxLinear SPX5205M5-L-5-0/TR is a 5V, 150mA LDO voltage regulator in a SOT-23 package. It offers ±1% accuracy and operates over a wide temperature range.
Mfr Part #:

SPX5205M5-L-5-0/TR

Available from 3 distributors
Mfr Name: Exar
Exar
The MaxLinear SPX5205M5-L-5-0/TR is a 5V, 150mA LDO voltage regulator in a SOT-23 package. It offers ±1% accuracy and operates over a wide temperature range.
✓ Total Stock: 6,642 pcs
$ Price Range: $0.28

SPX5205M5-L-5-0/TR Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
4,042 pcs
On Request
4042 pcs On Request 1 On Request On Request 21+ On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
2,432 pcs
On Request
2432 pcs On Request 1 On Request On Request 1831+ On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
168 pcs
On Request
168 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SPX5205M5-L-5-0/TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accuracy
Dimensions
Height
Input Voltage
Lead Spacing
Lead Style
Length
Mounting Type
Number of Outputs
Operating Temperature
Output Current
Output Voltage
Quiescent Current
Regulator Type
SVHC Present
Tape & Reel
Width
View Similar Products (0)

SPX5205M5-L-5-0/TR Description

Short technical summary and product information.

The MaxLinear SPX5205M5-L-5-0/TR is a positive polarity, low dropout (LDO) voltage regulator designed for efficient power management. It provides a fixed 5V output voltage with a maximum output current of 150mA and high accuracy of ±1%.



This regulator features low quiescent current of 0.07mA, line regulation of 0.1%/V, and load regulation of 0.2%. It operates from a minimum input voltage of 2.5V up to a maximum of 16V. The device is suitable for a wide range of applications due to its operating temperature range of -40°C to +125°C.



The SPX5205M5-L-5-0/TR comes in a compact 5-pin SOT-23 surface mount package with dimensions of 2.9 x 1.6 x 1.15mm. Its small size and surface mount capability make it ideal for space-constrained designs.

SPX5205M5-L-5-0/TR Quick Information

Product Type: LDO Voltage Regulator
Series: SPX5205
Canonical Name: SPX5205M5-L-5-0/TR LDO Regulator
Subcategory: LDO Voltage Regulator

SPX5205M5-L-5-0/TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SPX5205M5-L-5-0/TR Estimated Pricing

Qty Low High
1+ $0.28 $0.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

SPX5205M5-L-5-0/TR Features

  • Fixed 5V output voltage.
  • 150mA maximum output current.
  • ±1% high accuracy.
  • Wide -40°C to +125°C operating temperature.
  • Compact SOT-23 surface mount package.

SPX5205M5-L-5-0/TR Applications

  • Ideal for portable electronic devices.
  • Suitable for battery-powered applications.
  • Used in power supply circuits.
  • Applicable in consumer electronics.

SPX5205M5-L-5-0/TR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage of the SPX5205M5-L-5-0/TR?

The fixed output voltage is 5V.

What is the maximum output current?

It can provide up to 150mA.

What input voltage range does it accept?

Input voltage range is 2.5V to 16V.

What is the operating temperature range?

-40°C to +125°C.

What package is this regulator available in?

Surface-mount SOT-23 package with 5 pins.

What is the quiescent current?

0.07mA.

What is the output voltage accuracy?

±1%.
