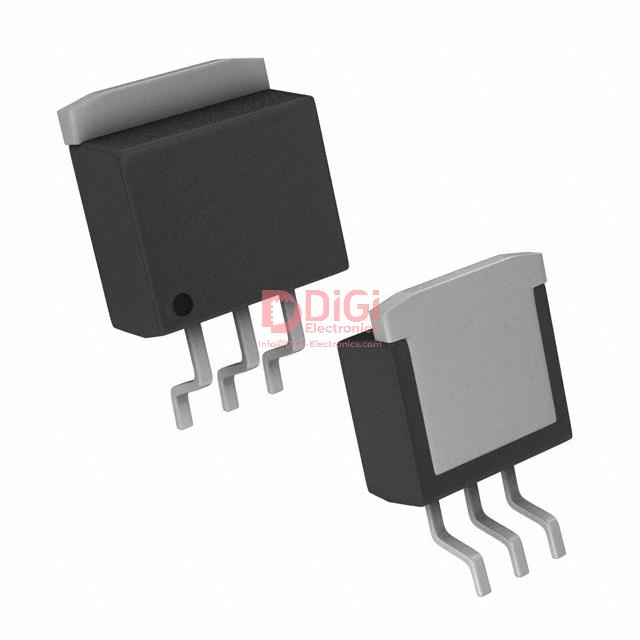

SPX29300T-L-2-5 The MaxLinear SPX29300T-L-2-5 is a fixed 2.5V linear voltage regulator capable of delivering up to 3A. It features a TO-263-3 surface mount package.
Mfr Part #:

SPX29300T-L-2-5

Available from 1 distributors
Mfr Name: Maxlinear
Maxlinear
The MaxLinear SPX29300T-L-2-5 is a fixed 2.5V linear voltage regulator capable of delivering up to 3A. It features a TO-263-3 surface mount package.
✓ Total Stock: 67,000 pcs
$ Price Range: $23.40

SPX29300T-L-2-5 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
67,000 pcs
On Request
67000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SPX29300T-L-2-5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Lead Style
Mounting Type
Number of Regulators
Operating Temperature
Output Configuration
Output Type
Protection Features
Supplier Device Package
Voltage
Voltage Dropout (Max)
View Similar Products (0)

SPX29300T-L-2-5 Description

Short technical summary and product information.

The MaxLinear SPX29300T-L-2-5 is a positive, fixed output linear voltage regulator designed for efficient power management. It provides a stable 2.5V output voltage and can supply a maximum current of 3A. The device operates with a maximum input voltage of 16V and has a typical voltage dropout of 0.8V at 3A.



Key electrical features include over current, reverse polarity, and transient voltage protection, ensuring reliable operation in demanding applications. The regulator is designed for a wide operating temperature range of -40°C to 125°C.



Packaged in a TO-263-3 surface mount configuration, the SPX29300T-L-2-5 is suitable for various electronic designs requiring a robust and high-current linear regulation solution. Its fixed output and protective features make it a versatile component for power supply circuits.

SPX29300T-L-2-5 Quick Information

Product Type: Linear Voltage Regulator
Canonical Name: Maxlinear SPX29300T-L-2-5 Linear Voltage Regulator
Subcategory: LDO Regulators

SPX29300T-L-2-5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SPX29300T-L-2-5 Estimated Pricing

Qty Low High
1+ $23.40 $23.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

SPX29300T-L-2-5 Features

  • Fixed 2.5V positive output voltage.
  • Maximum output current of 3A.
  • Low dropout voltage of 0.8V at 3A.
  • Wide operating temperature range.
  • TO-263-3 surface mount package.

SPX29300T-L-2-5 Applications

  • High-current power regulation.
  • Stable voltage supply circuits.
  • Applications requiring over current protection.
  • Designs needing reverse polarity protection.

SPX29300T-L-2-5 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the output voltage of the SPX29300T-L-2-5?

The SPX29300T-L-2-5 has a fixed output voltage of 2.5V.

What is the maximum output current for this linear regulator?

The maximum output current for the SPX29300T-L-2-5 is 3A.

What is the operating temperature range for the SPX29300T-L-2-5?

The operating temperature range is -40°C to 125°C.

What type of package is the SPX29300T-L-2-5 in?

The SPX29300T-L-2-5 is available in a TO-263-3 package.

Does the SPX29300T-L-2-5 have over current protection?

Yes, the SPX29300T-L-2-5 includes over current protection.
