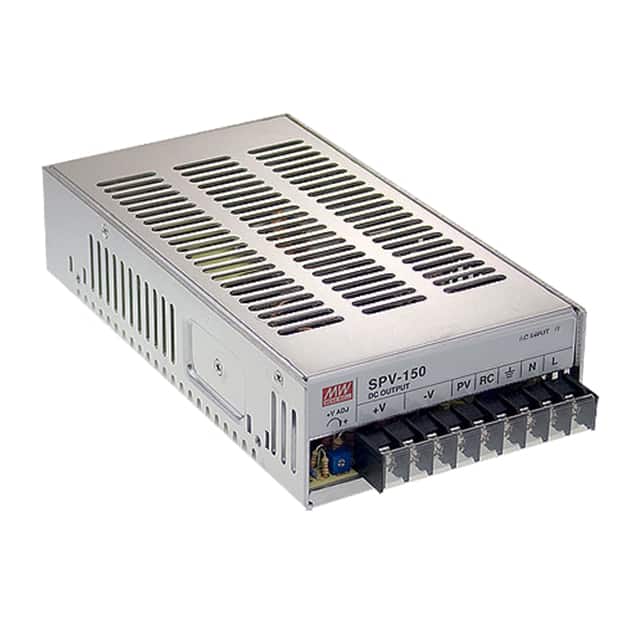

The Mean Well USA SPV-150-12 is a 150W enclosed AC/DC power supply designed for chassis mounting. It operates with a universal input voltage range of 88V to 264V AC and provides a stable 12V DC output at a rated current of 12.5A.
Key electrical features include an efficiency of 82%, a built-in active PFC function with a PF value greater than 0.94, and protections against short circuit, overload, over voltage, and over temperature. The output voltage is programmable from 20% to 110% via an external control signal, and it includes a built-in remote ON-OFF control.
With a fixed switching frequency of 100KHz and cooling by free air convection, this power supply is suitable for ITE (Commercial) applications. It has an operating temperature range of -20°C to 65°C with derating. The dimensions are 8.46 x 4.53 x 1.97 inches, and it weighs 2.42 lbs.
This series is backed by a 3-year warranty, offering reliability for various industrial and commercial systems.
The output voltage is 12V.
The power rating is 150W.
The input voltage range is 88V to 264V AC.
The operating temperature range is -20°C to 65°C, with derating.
Yes, it includes protection against short circuit, overload, over voltage, and over temperature.
It is an enclosed type designed for chassis mounting.
