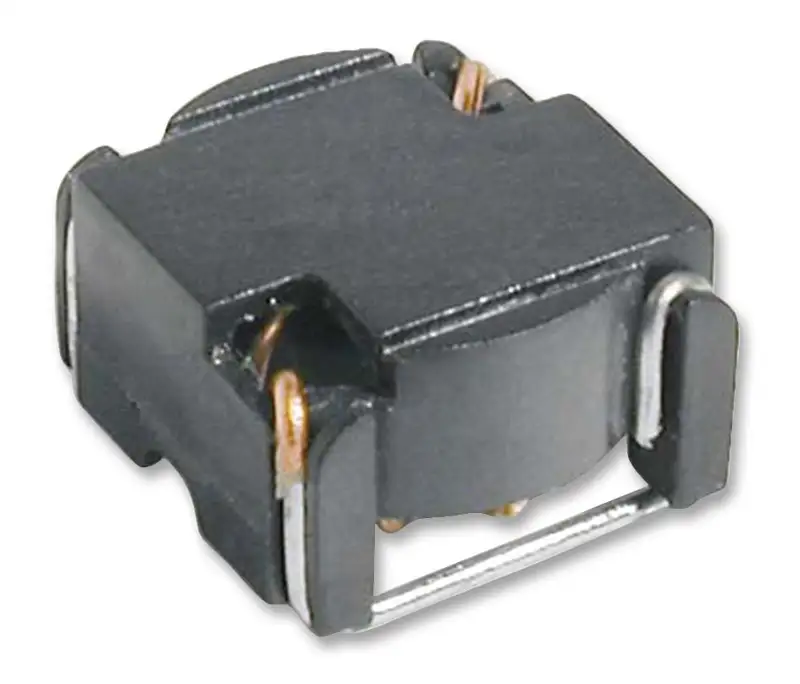

SPT30L-353MLD The Coilcraft SPT30L-353MLD is a toroidal inductor with 35µH inductance and a 1.6A current rating. It features ±20% inductance tolerance and is designed for SMD mounting.
Mfr Part #:

SPT30L-353MLD

Available from 1 distributors
Mfr Name: Coilcraft
Coilcraft
The Coilcraft SPT30L-353MLD is a toroidal inductor with 35µH inductance and a 1.6A current rating. It features ±20% inductance tolerance and is designed for SMD mounting.
✓ Total Stock: 191 pcs
$ Price Range: $0.18

SPT30L-353MLD Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
191 pcs
On Request
191 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SPT30L-353MLD Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Inductance
Lead Style
Mounting Type
SVHC Present
View Similar Products (0)

SPT30L-353MLD Description

Short technical summary and product information.

The Coilcraft SPT30L-353MLD is a toroidal inductor from the SPT series, designed for power applications. It offers an inductance value of 35µH with a tolerance of ±20%. The inductor has a rated RMS and DC current of 1.6A and a maximum DC resistance of 0.166 ohm.



This SMD (Surface Mount Device) inductor features a case size of 11.18mm x 11.05mm x 9.5mm. It has a minimum self-resonant frequency of 12MHz, making it suitable for various power conversion circuits. The SPT30L-353MLD is compliant with RoHS3 standards and has an MSL rating of 1.



Key electrical characteristics include its inductance, current handling capabilities, and DCR. The SMD package facilitates automated assembly processes. This component is part of Coilcraft's extensive range of magnetic components.

SPT30L-353MLD Quick Information

Product Type: Toroidal Inductor
Series: SPT
Canonical Name: Coilcraft SPT30L-353MLD Toroidal Inductor
Subcategory: Toroidal Inductor

SPT30L-353MLD Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SPT30L-353MLD Estimated Pricing

Qty Low High
1+ $0.18 $0.18

Estimated market price range - modelled values for guidance only, not live distributor offers.

SPT30L-353MLD Features

  • 35µH inductance with ±20% tolerance.
  • Rated for 1.6A RMS and DC current.
  • Low 0.166 ohm maximum DC resistance.
  • Minimum self-resonant frequency of 12MHz.
  • SMD package for surface mounting.

SPT30L-353MLD Applications

  • Ideal for power supply filtering.
  • Suitable for DC-DC converters.
  • Used in energy storage circuits.
  • Applicable in switch-mode power supplies.

SPT30L-353MLD FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance of the SPT30L-353MLD?

The inductance of the SPT30L-353MLD is 35µH.

What is the current rating for the SPT30L-353MLD?

The SPT30L-353MLD has a current rating of 1.6A for both RMS and DC.

What is the maximum DC resistance (DCR) of this inductor?

The maximum DC resistance for the SPT30L-353MLD is 0.166 ohm.

What is the minimum self-resonant frequency (SRF) of the SPT30L-353MLD?

The minimum self-resonant frequency for the SPT30L-353MLD is 12MHz.

What are the dimensions of the SPT30L-353MLD inductor?

The SPT30L-353MLD inductor has case dimensions of 11.18mm x 11.05mm x 9.5mm.

Is the SPT30L-353MLD RoHS compliant?

The SPT30L-353MLD is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this inductor?

The Moisture Sensitivity Level (MSL) for the SPT30L-353MLD is 1 Unlimited.
