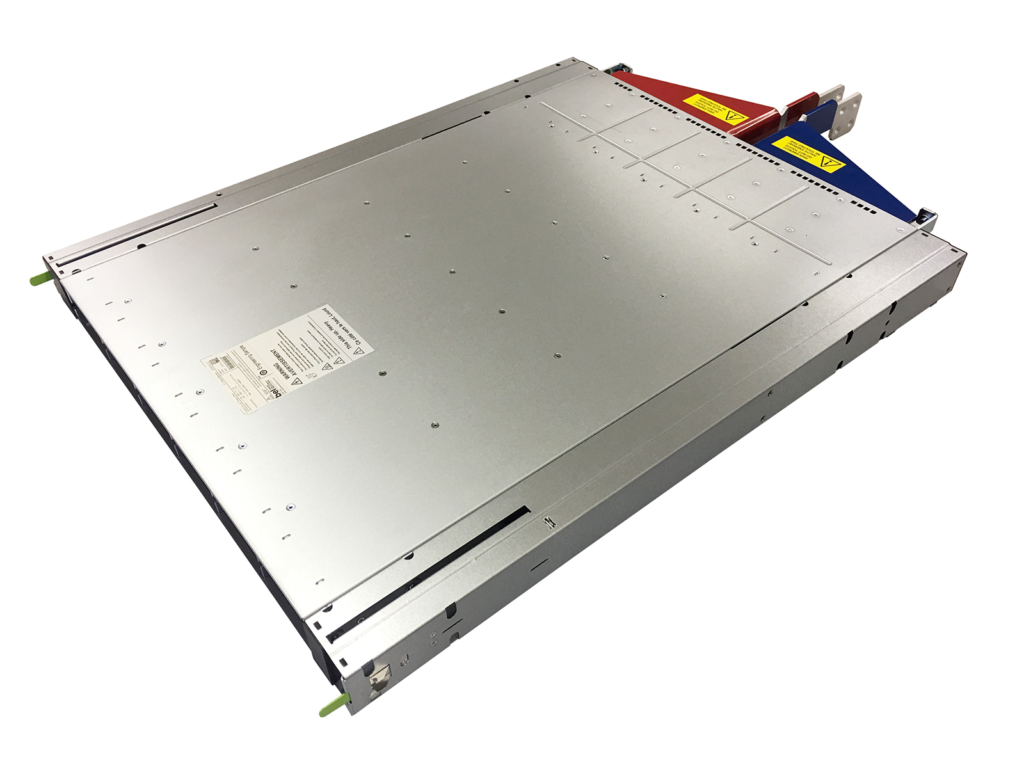

The Bel Power Solutions SPSPFE3-07 is a versatile HVDC-DC power shelf designed for high-performance servers, routers, and network switches. It converts High Voltage DC Bus power into a main output of 12 VDC, suitable for powering intermediate bus architectures.
This power shelf can be configured with up to six hot-swap capable power modules. It features two separate DC inputs, with one inlet powering three power modules. The modules support I2C communication for control, programming, and monitoring via the Power Management Bus protocol. Protections include overtemperature, output overvoltage, and output overcurrent.
The SPSPFE3-07 is compatible with the Open Compute Rack Design and offers an optional slot for a Network Attached Controller. This controller provides monitoring and control functions through a 10/100 MB base Ethernet port, allowing direct connection to the data center management network. The shelf utilizes an offset bus bar for its +12 VDC output.
The nominal input voltage is 380 VDC, with a range of 240 to 380 VDC.
It provides 12 VDC output.
It supports I2C/PMBus communication for control, programming, and monitoring.
Yes, it is compatible with the Open Compute Rack Design.
Yes, the modules are hot-swap capable.
The modules implement protections for overtemperature, output overvoltage, and output overcurrent.
Two separate DC inputs, each powering three power modules.
