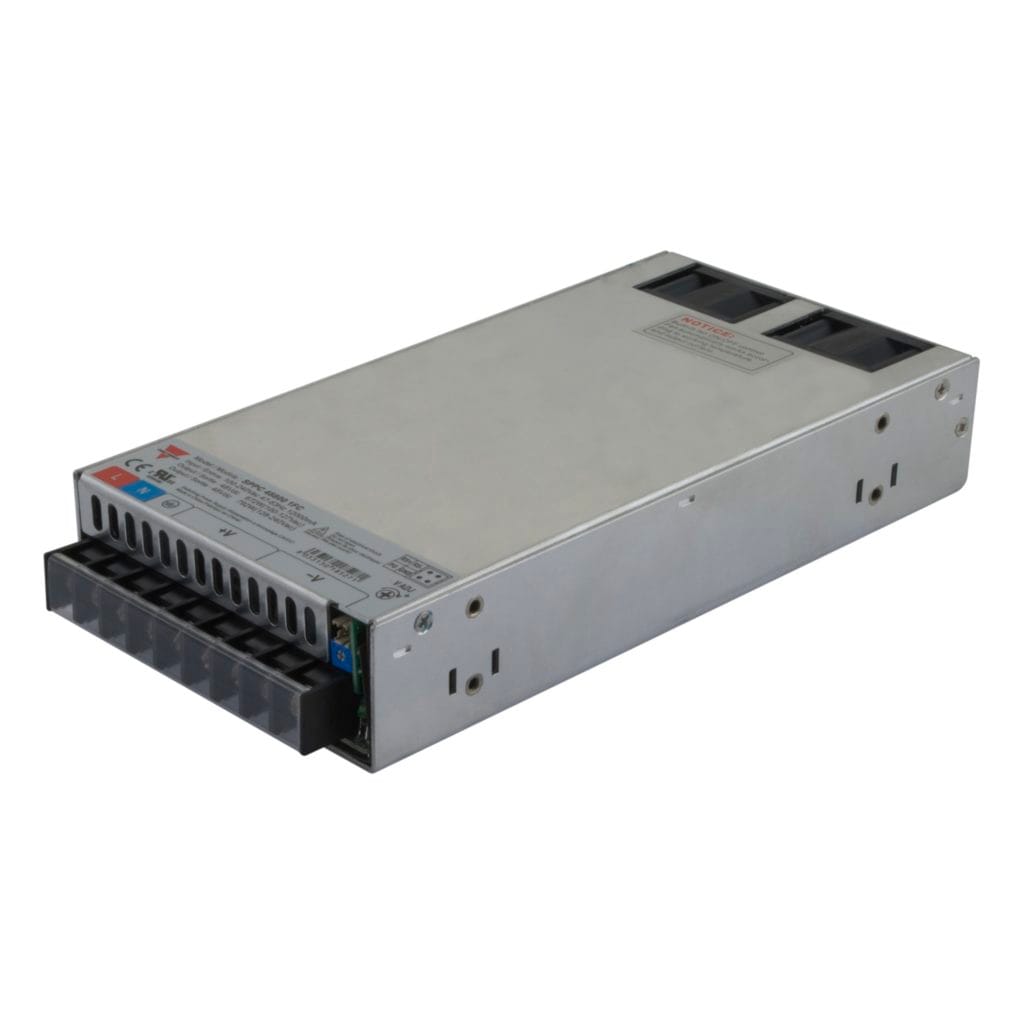

The Carlo Gavazzi SPPC248001FC is a high-performance, enclosed AC/DC power supply designed for industrial control and automation applications. It offers a universal input voltage range, accepting both AC (90-264 VAC) and DC (127-370 VDC) power sources, providing flexibility for various global installations.
This power supply delivers a stable 24VDC output with a maximum current of 33A, resulting in a total output power of 800W. Key electrical features include an adjustable output voltage range of 23.52-24.48 VDC, an efficiency rating of 88%, and built-in active Power Factor Correction (PFC). It also incorporates short circuit and stabilized output voltage protections for enhanced reliability.
The SPPC248001FC is built for demanding environments, with an operating temperature range from -30°C to 70°C with derating. Its compact dimensions (226.0mm x 116.5mm x 41.0mm) and chassis mount type make it suitable for integration into various systems. The unit features screw terminals for easy connection and carries CE and cURus approvals, indicating compliance with international safety standards.
The input voltage range is 90-264 VAC or 127-370 VDC.
The output voltage is 24 VDC (adjustable 23.52-24.48 VDC) and the output current is 33 A.
The operating temperature range is -30°C to 70°C with derating.
The dimensions are 226.0 mm x 116.5 mm x 41.0 mm.
It is chassis mountable with screw terminals.
The efficiency is 88%.
It is approved with CE and cURus.
