| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage |

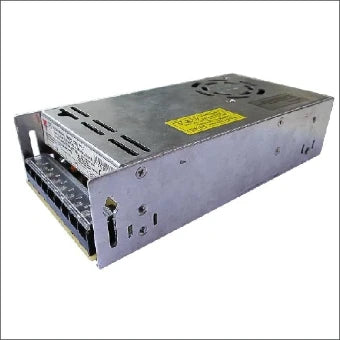

The Carlo Gavazzi SPPC122001FC is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a power output of 200W and a current rating of 16.7A.
Key features include adjustable output, Power Factor Correction (PFC), and universal input compatibility. The unit offers a voltage rating of 3 kV and operates within a temperature range of -25°C to 70°C with derating. Its efficiency is rated at 84%.
This converter is designed for chassis mounting and has a single output. It meets CE and cURus approval agency standards. The dimensions are 199.0mm in length, 99.0mm in width, and 50.0mm in height.
The output voltage is 12V and the output current is 16.7A.
The power rating is 200W.
The operating temperature range is -25°C to 70°C with derating.
It uses chassis mount.
The dimensions are 199.0mm x 99.0mm x 50.0mm.
It is approved to CE and cURus standards.
The efficiency is 84%.
