| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

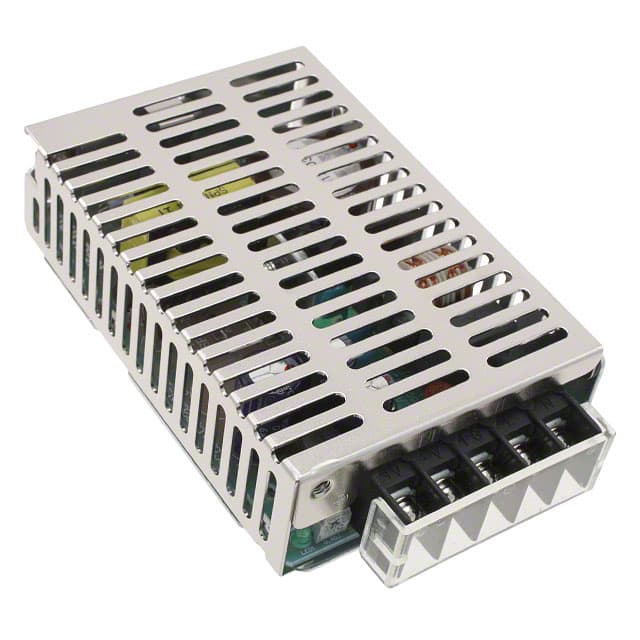

The SPN30-15S from Kaga Electronics USA is a 30-watt, enclosed AC/DC power supply designed for ITE (Commercial) applications. It operates with a universal input voltage range of 85 to 264 VAC and provides a stable 15VDC output at a maximum current of 2.1A.
Key electrical specifications include an efficiency of 79% and an isolation voltage of 3 kV. The unit incorporates over-voltage protection and automatic recovery over-current protection, ensuring reliable operation. It is designed for chassis mounting and features a compact, low-profile package.
Environmental specifications include an operating temperature range of 0°C to 60°C and a humidity range of 20-85% RH (non-condensing). The power supply is built with a metal chassis and cover for durability. It is suitable for various commercial applications requiring a dependable power source.
85-264VAC.
15VDC at 2.1A.
0°C to 60°C.
Enclosed chassis mount.
111.5mm x 75mm x 32mm (4.39" x 2.95" x 1.26").
Over-voltage protection (115-150%) and over-current protection with automatic recovery (105% minimum).
3000VAC primary to secondary.
