| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Weight | |
| Width |

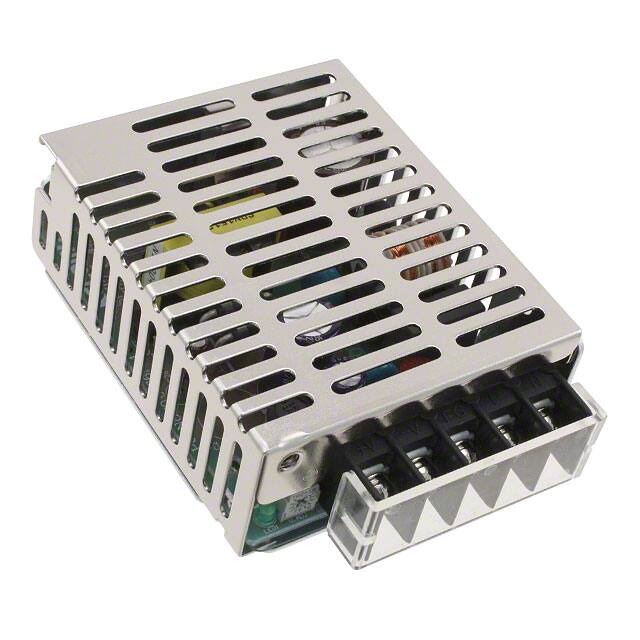

The Kaga Electronics USA SPN15-15S is an enclosed AC/DC converter designed for various applications. It provides a 15VDC output at 1A, delivering a total of 15W of power.
This converter features a universal input voltage range of 85-264VAC and operates at frequencies between 47-63Hz. Key electrical specifications include an efficiency of 75-80%, over-voltage protection set at 115-150%, and automatic recovery for over-current protection. It also offers a hold-up time of 40-50mS and an MTBF rating exceeding 160,000 hours.
The SPN15-15S is designed for chassis mounting and has dimensions of 86.5mm x 71.0mm x 32.0mm. It operates within a temperature range of 0°C to 60°C and is cooled via convection. The unit is built with a metal chassis and cover, contributing to its durability and thermal management.
85 ~ 264 VAC.
Enclosed, chassis mount.
0°C to 60°C.
86.5mm x 71.0mm x 32.0mm, weight 200g.
1.0A at 15VDC.
79% typical at full load.
Over-voltage protection 115-150% manual reset, over-current protection 105% min automatic recovery.
