| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Frequency | |
| Input Voltage | |
| Lead Style | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

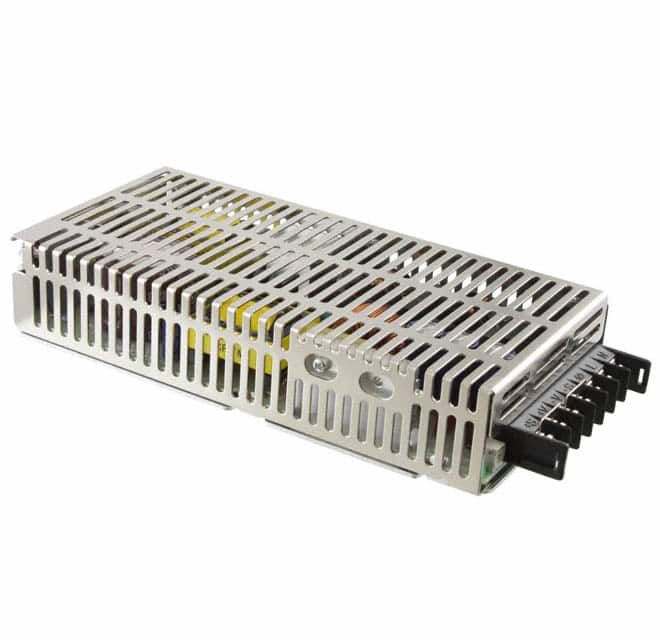

The Kaga Electronics USA SPN100-05S is a 100W enclosed AC/DC converter designed for reliable power conversion. It offers a single 5V output with an adjustable range of ±10% and a maximum current of 20A.
This converter operates with a universal input voltage range of 85-264 VAC and features Power Factor Correction (PFC) with a typical power factor of 0.99. Key electrical specifications include an efficiency of 81% and a hold-up time of 50 mS. It is designed for ITE (Commercial) applications and includes features like adjustable output, DC input capability, and PFC.
The unit is built for chassis mounting and has dimensions of 187.0mm x 93.0mm x 39.0mm. The operating temperature range is 0°C to 60°C, with derating applied after 50°C. It also meets various safety and compliance standards, including CE, CSA, cUL, and UL approvals.
The SPN100-05S has a 5V output voltage.
The maximum power output is 100W.
The input voltage range is 85 to 264 VAC.
The operating temperature range is 0°C to 60°C.
It uses chassis mount.
