| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Current Rating (Amps) | |
| Gender | |
| Height | |
| Housing Material | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Style | |
| Number of Positions or Pins (Grid) | |
| Number of Rows | |
| Pitch | |
| Type | |
| Voltage Rating |

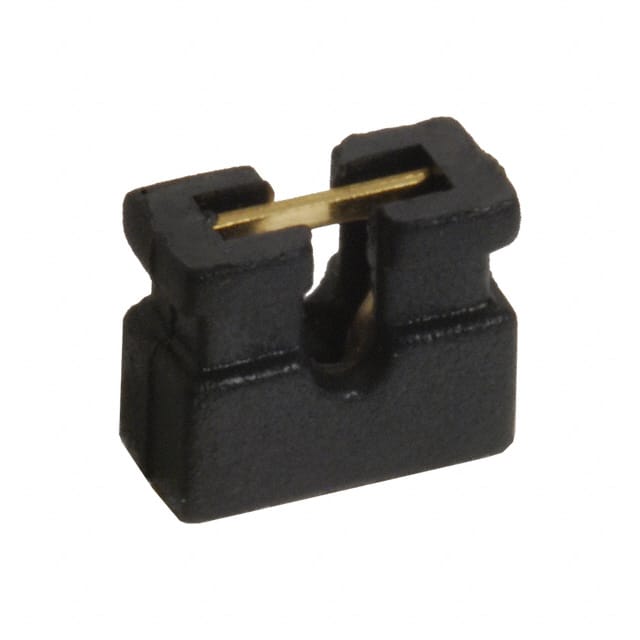

The Sullins Connector Solutions SPN02SYBN-RC is a 2.00mm pitch open top shunt designed for single-circuit jumper applications. It features a 1x2 pin configuration with female sockets and gold flash plated phosphor bronze contacts for reliable electrical performance.
This shunt is rated for 1A per contact at 250VAC and is housed in a UL94 V-0 rated PBT insulator. The open top design allows easy access for probing or testing. With a height of 3.50mm, it is suitable for low-profile board-to-board or wire-to-board connections.
The SPN02SYBN-RC has no mounting style, making it a free-standing jumper for use with mating header pins. It is RoHS3 compliant and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.10 | $0.10 |
| 10+ | $0.06 | $0.06 |
| 25+ | $0.06 | $0.06 |
| 50+ | $0.05 | $0.05 |
| 100+ | $0.05 | $0.05 |
| 250+ | $0.05 | $0.05 |
| 500+ | $0.05 | $0.05 |
| 1,000+ | $0.04 | $0.04 |
| 3,000+ | $0.04 | $0.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.00mm (0.079 inches).
It has 2 positions arranged in a 1x2 grid.
The current rating is 1A per contact.
The voltage rating is 250VAC.
The mounting style is No Mounting (free-standing).
The contact finish is gold flash.
The housing material is PBT (Polybutylene Terephthalate) with UL94 V-0 flammability rating.
