| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Halogen Free | |
| Height | |
| Inductance | |
| Inductance Tolerance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Ratings | |
| SVHC Present | |
| Saturation Current (ISAT) | |
| Shielding | |
| Temperature Rise Current (Itemp) | |
| Tolerance | |
| Type | |
| Width |

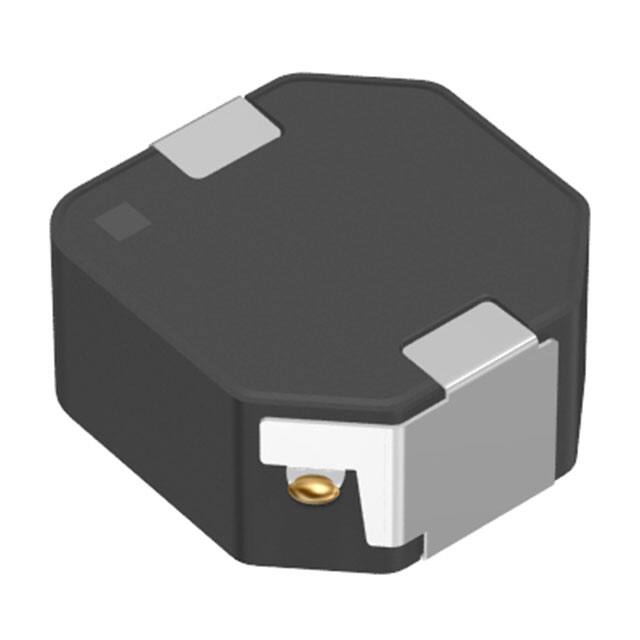

The TDK SPM12565VT-3R3M-D is a shielded metal composite fixed inductor designed for high current applications. It offers an inductance of 3.3 µH with ±20% tolerance, measured at 100 kHz. The typical DC resistance is 4.9 mΩ, and the continuous current rating is 16.8 A. The saturation current is 34.6 A typical (ΔL=–30%), ensuring stable performance under high current conditions.
The inductor operates over a wide temperature range of -55°C to 155°C, making it suitable for harsh environments. It is AEC-Q200 qualified, meeting automotive reliability standards. The drum core, wirewound construction with metal composite material provides excellent shielding and low core loss.
The component is housed in a nonstandard surface mount package measuring 13.00 mm x 12.50 mm x 6.50 mm. It is lead-free and halogen-free, complying with environmental regulations. Typical applications include DC-DC converters, power supply filtering, and energy storage circuits in automotive and industrial electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.18 | $0.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3.3 µH at 100 kHz.
16.8 A typical.
4.9 mΩ typical.
34.6 A typical (ΔL=–30%).
-55°C to 155°C.
13.00 mm x 12.50 mm x 6.50 mm, surface mount.
Yes, it is rated AEC-Q200.
