| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
627 pcs
|
627 pcs | On Request | 1 | On Request | On Request | 10+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Delay Time | |
| Function | |
| Interface | |
| Junction Temperature | |
| Motor Type | |
| Mounting Type | |
| Operating Temperature | |
| Output Configuration | |
| Power Dissipation | |
| Storage Temperature | |
| Supplier Device Package | |
| Technology | |
| Voltage |

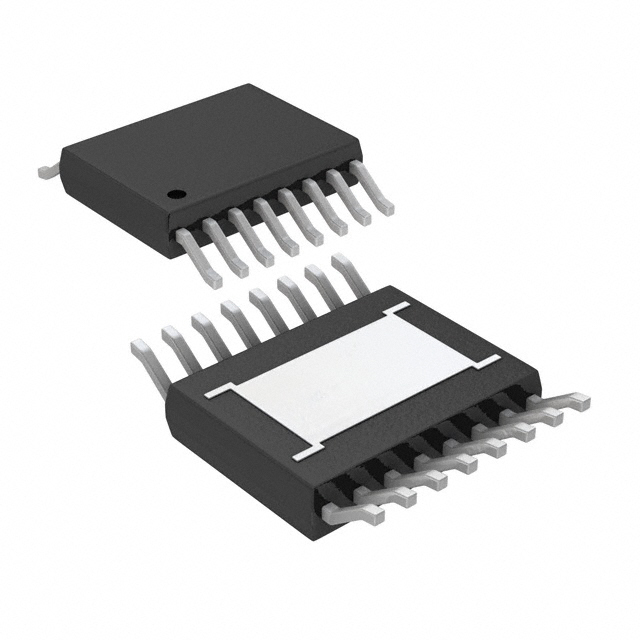

The Sanken SPI-6631M is a 3-phase brushless DC motor driver IC designed for various motor control applications. It supports a wide main supply voltage range of 13V to 33V and can deliver a maximum output current of 3A.
Key features include built-in protection mechanisms such as Under Voltage Lockout (UVLO), Thermal Shutdown (TSD), and Overcurrent Protection (OCP). It also incorporates a dead time function to prevent through-current during phase switching and an error sense flag output for system monitoring. The device is housed in a 16-HSOP package with surface mount mounting type.
Electrical characteristics include an input voltage range of -0.3V to 6.5V and a MOSFET ON resistance of 800mΩ typical. The operating ambient temperature range is -20°C to 85°C, with a maximum junction temperature of 150°C.
This motor driver IC is suitable for applications requiring efficient and reliable control of brushless DC motors, benefiting from its integrated protection features and compact package.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.25 | $2.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The main supply voltage range for the SPI-6631M is 13 V to 33 V.
The SPI-6631M has a maximum output current of 3 A.
The SPI-6631M includes built-in UVLO, TSD, and OCP protection.
The SPI-6631M is designed to drive Brushless DC (BLDC) motors.
The SPI-6631M is available in a 16-HSOP package.
The operating ambient temperature range for the SPI-6631M is -20°C to 85°C.
