| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,000 pcs
|
9000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Applications | |
| Automotive Grade | |
| Capacitance @ Frequency | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Power Line Protection | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Unidirectional Channels | |
| Voltage |

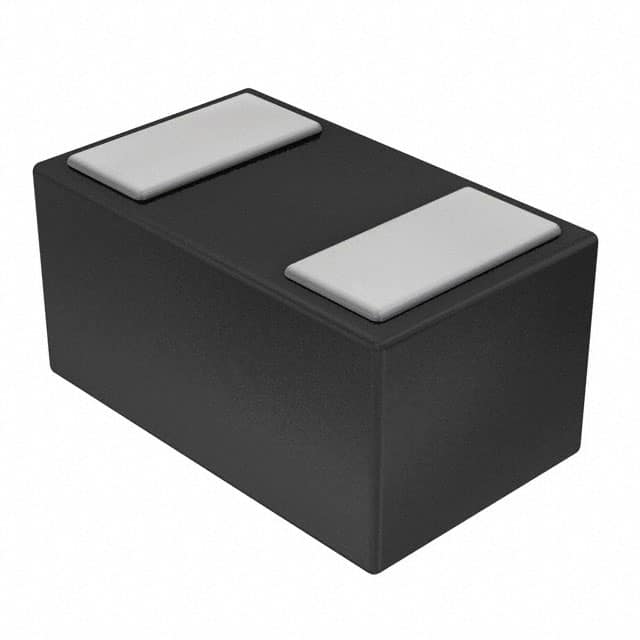

The SPHV24-01ETG is a Zener-type transient voltage suppression (TVS) diode manufactured by Littelfuse Inc. It is designed to protect sensitive electronics from overvoltage transients, clamping excessive voltages to safe levels.
Electrical specifications include a typical reverse standoff voltage of 24 V and a maximum clamping voltage of 50 V at a peak pulse current of 3 A (8/20 µs waveform). The device can handle 200 W of peak pulse power and has a capacitance of 32 pF at 1 MHz. It is unidirectional and not intended for power line protection.
The SPHV24-01ETG is offered in a surface-mount SOD-882 package, suitable for automated assembly. It operates over a junction temperature range of -40°C to 125°C. According to available data, the component is intended for automotive applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.46 | $0.46 |
| 10+ | $0.30 | $0.30 |
| 100+ | $0.19 | $0.19 |
| 500+ | $0.15 | $0.15 |
| 1,000+ | $0.12 | $0.12 |
| 2,500+ | $0.11 | $0.11 |
| 5,000+ | $0.10 | $0.10 |
| 10,000+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
24 V typical.
50 V maximum at 3 A peak pulse current.
3 A for an 8/20 µs waveform.
SOD-882 surface mount package.
200 W.
-40°C to 125°C (junction).
