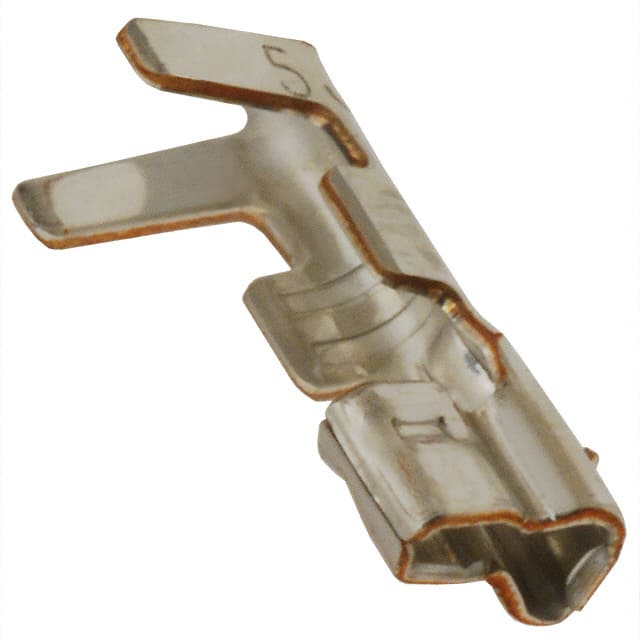

SPH-002T-P0.5S JST SPH-002T-P0.5S is a crimp socket contact for 24-30 AWG wire, tin plated, rated 1A and 100V.
Mfr Part #:

SPH-002T-P0.5S

Available from 3 distributors
Mfr Name: Jst Manufacturing
Jst Manufacturing
JST SPH-002T-P0.5S is a crimp socket contact for 24-30 AWG wire, tin plated, rated 1A and 100V.
✓ Total Stock: 46,576 pcs
$ Price Range: $0.05

SPH-002T-P0.5S Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Seba Components ✓
Non-Authorised Inventory information
35,500 pcs
On Request
35500 pcs On Request 1 On Request On Request On Request On Request On Request
Emiteli ✓
Non-Authorised Inventory information
6,985 pcs
On Request
6985 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
4,091 pcs
$0.05 ℹ
Qty Price
0+ 0.05
4091 pcs $0.05
QtyPrice
0+ 0.05
1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SPH-002T-P0.5S Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Finish
Contact Material
Contact Resistance
Contact Termination
Current Rating
Failure Rate
Insulation Resistance
Operating Temperature Range
Pin or Socket
Pitch
Tape & Reel
Termination Style
Voltage Rating
Wire Gauge
Withstanding Voltage
View Similar Products (0)

SPH-002T-P0.5S Description

Short technical summary and product information.

The JST SPH-002T-P0.5S is a crimp-type socket contact from the SPH series, designed for wire-to-board connections in compact electronic assemblies. It accepts 24 to 30 AWG wire and features a tin-plated phosphor bronze contact for reliable conductivity and corrosion resistance.



Electrical ratings include 1A current and 100V voltage (AC/DC), with a maximum contact resistance of 20 mΩ and minimum insulation resistance of 1000 MΩ. The contact withstands 1000V AC for one minute. Operating temperature ranges from -25°C to +85°C.



With a 1.0 mm pitch, this contact is suitable for high-density PCB applications where space is limited. The crimp termination provides a secure, gas-tight connection suitable for automated assembly.

SPH-002T-P0.5S Quick Information

Product Type: Crimp Socket Contact
Series: SPH
Canonical Name: JST SPH Series Crimp Socket Contact
Subcategory: Rectangular Connector Contacts

SPH-002T-P0.5S Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SPH-002T-P0.5S Estimated Pricing

Qty Low High
1+ $0.10 $0.10
10+ $0.04 $0.04
25+ $0.04 $0.04
100+ $0.03 $0.03
250+ $0.03 $0.03
1,000+ $0.03 $0.03
2,500+ $0.03 $0.03
5,000+ $0.02 $0.02
8,000+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

SPH-002T-P0.5S Features

  • Crimp termination for 24-30 AWG wire.
  • Tin-plated phosphor bronze contact material.
  • Rated 1A current and 100V voltage.
  • Operating temperature range -25°C to +85°C.
  • 1.0 mm pitch for high-density designs.

SPH-002T-P0.5S Applications

  • Wire-to-board connections in compact electronics.
  • High-density PCB assemblies requiring small pitch.
  • Automotive and industrial control modules.
  • Consumer electronics and home appliances.

SPH-002T-P0.5S FAQs

5 frequently asked questions generated from this part’s specifications.
What is the current rating of the SPH-002T-P0.5S?

The current rating is 1 A (AC/DC).

What is the voltage rating of the SPH-002T-P0.5S?

The voltage rating is 100 V (AC/DC).

What wire gauge does the SPH-002T-P0.5S accept?

It accepts 24 to 30 AWG wire.

What is the pitch of the SPH-002T-P0.5S?

The pitch is 1.0 mm.

What is the operating temperature range of the SPH-002T-P0.5S?

The operating temperature range is -25°C to +85°C.
