| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
140 pcs
|
140 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applicable PCB Thickness | |
| Applicable Wire Range | |
| Contact Finish | |
| Contact Resistance | |
| Contact Termination | |
| Current Rating | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature Range | |
| Pin or Socket | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating | |
| Wire Gauge | |
| Withstanding Voltage |

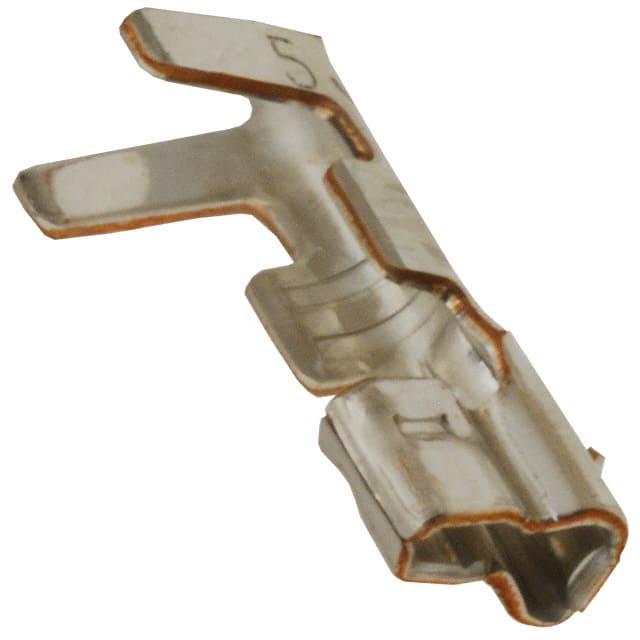

The JST SPH-002T-P0.5L is a socket contact designed for use with JST PH series connectors. It accommodates 24-28 AWG wire and uses a crimp termination style for secure connections. The contact features a tin finish and is rated for 3 A current and 100 V voltage.
Electrical specifications include a contact resistance of 20 mΩ initial (max 30 mΩ after environmental tests), insulation resistance of 1000 MΩ min, and withstanding voltage of 1000 V AC for one minute. The operating temperature range is -25 to +85 °C.
This contact is suitable for wire-to-board applications in compact electronic devices where space is limited. The crimp termination provides reliable mechanical and electrical connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.10 | $0.10 |
| 10+ | $0.05 | $0.05 |
| 25+ | $0.04 | $0.04 |
| 100+ | $0.04 | $0.04 |
| 250+ | $0.03 | $0.03 |
| 1,000+ | $0.03 | $0.03 |
| 2,500+ | $0.02 | $0.02 |
| 5,000+ | $0.02 | $0.02 |
| 8,000+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
24-28 AWG
3 A
100 V
-25 to +85 °C
Crimp
