| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,130 pcs
|
1130 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Resistance | |
| Contact Termination | |
| Current Rating | |
| Insulation Resistance | |
| Operating Temperature Range | |
| Pin or Socket | |
| Voltage Rating | |
| Wire Gauge | |
| Withstanding Voltage |

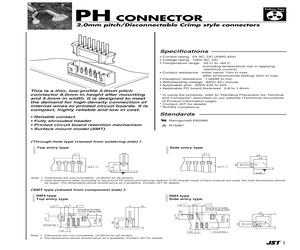

The SPH-002GA-P0.5S is a socket contact used in JST's SPH series rectangular connectors. It features a crimp termination style for secure wire attachment. The contact accepts wire gauges from 24 to 30 AWG and is finished with gold plating for reliable conductivity. Electrical ratings include 3 A current and 250 V voltage. The contact has a contact resistance of 20 mΩ maximum and insulation resistance of 1000 MΩ minimum. Withstanding voltage is 1000 V for one minute. Operating temperature range is -25 to +85 °C. This contact is suitable for high-density PCB applications where space is limited. It is supplied in a standard package of 1000 pieces (unverified). The part is RoHS3 compliant and has MSL 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.16 | $0.16 |
| 10+ | $0.13 | $0.13 |
| 25+ | $0.10 | $0.10 |
| 100+ | $0.09 | $0.09 |
| 250+ | $0.08 | $0.08 |
| 1,000+ | $0.07 | $0.07 |
| 2,500+ | $0.06 | $0.06 |
| 5,000+ | $0.06 | $0.06 |
| 8,000+ | $0.06 | $0.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 A.
250 V.
24-30 AWG.
Gold.
-25 to +85 °C.
20 mΩ maximum.
1000 MΩ minimum.
