SPF5122Z The RFMD SPF5122Z is an RF Amplifier IC designed for Cellular, ISM, and PCS applications. It operates across a wide frequency range and offers significant gain.
Mfr Part #:

SPF5122Z

Available from 1 distributors
Mfr Name: RFMD
RFMD
The RFMD SPF5122Z is an RF Amplifier IC designed for Cellular, ISM, and PCS applications. It operates across a wide frequency range and offers significant gain.
✓ Total Stock: 3,314 pcs

SPF5122Z Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
3,314 pcs
On Request
3314 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SPF5122Z Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Frequency
Gain
Mounting Type
Output Power
Package / Case
SVHC Present
Tape & Reel
Termination Style
Test Frequency
View Similar Products (0)

SPF5122Z Description

Short technical summary and product information.

The RFMD SPF5122Z is a Monolithic Microwave Integrated Circuit (MMIC) Low Noise Amplifier (LNA) designed for RF applications. It operates within a frequency range of 50 MHz to 4 GHz, making it suitable for Cellular, ISM, and PCS bands.



This amplifier provides a typical gain of 6.5 dB and a typical output power of 19.2 dBm. It draws a typical supply current of 90 mA at a test current of 1.19 dB. The device operates at a breakdown voltage of 5V.

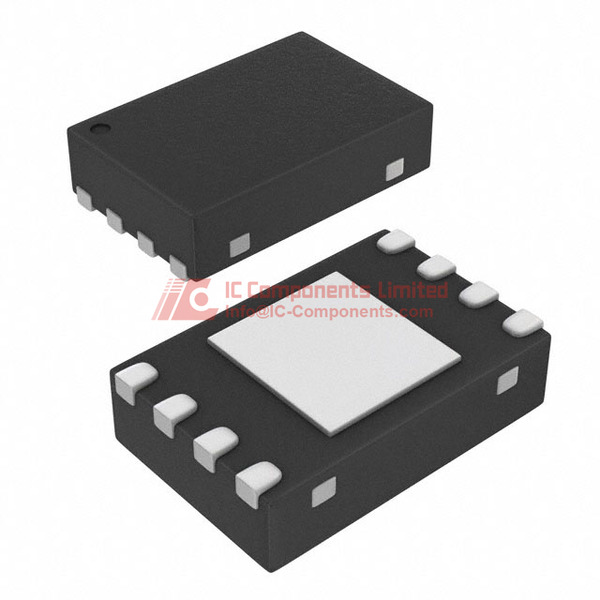

The SPF5122Z comes in an 8-DFN (2x2) package with a surface mount type. It features an exposed pad for enhanced thermal performance. The component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.



This RF amplifier is ideal for applications requiring high-frequency signal amplification within the specified bands. Its compact package and performance characteristics make it a versatile component for various wireless communication systems.

SPF5122Z Quick Information

Product Type: RF Amplifier
Series: SPF
Canonical Name: RF Amplifier IC
Subcategory: MMIC LNA

SPF5122Z Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead free

SPF5122Z Features

  • Operates from 50 MHz to 4 GHz.
  • Provides 6.5 dB typical gain.
  • Delivers 19.2 dBm typical output power.
  • Features an 8-DFN (2x2) package.
  • RoHS3 compliant.

SPF5122Z Applications

  • Suitable for Cellular applications.
  • Ideal for ISM band devices.
  • Used in PCS communication systems.
  • General RF signal amplification.

SPF5122Z FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating frequency range of the SPF5122Z?

The SPF5122Z operates from 50 MHz to 4 GHz.

What is the typical gain of the SPF5122Z RF Amplifier?

The typical gain of the SPF5122Z is 6.5 dB.

What is the typical output power of the SPF5122Z?

The typical output power of the SPF5122Z is 19.2 dBm.

What package type is the SPF5122Z supplied in?

The SPF5122Z is supplied in an 8-DFN (2x2) package.

What is the RoHS status of the SPF5122Z?

The SPF5122Z is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the SPF5122Z?

The Moisture Sensitivity Level (MSL) for the SPF5122Z is 1 Unlimited.
