| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,007 pcs
|
1007 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tolerance | |
| Type | |
| Width |

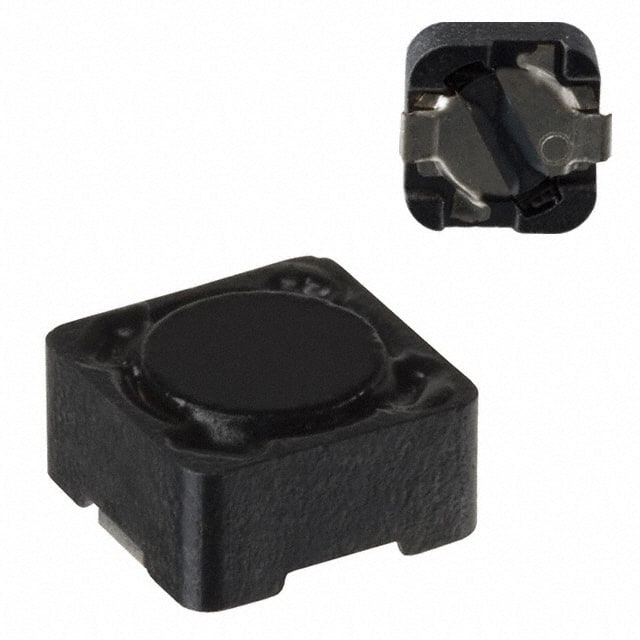

The API Delevan Inc. SPD73-223M is a fixed inductor designed for surface mount applications. This shielded, wirewound component features a drum core and a ferrite material.
Key electrical specifications include an inductance of 22µH with a tolerance of ±20%, and a maximum DC resistance of 190mOhm. It is rated for a current of 1.1A. The operating temperature range is from -55°C to 125°C.
With dimensions of 7.30mm in length and width, and a height of 3.90mm, this inductor is suitable for various electronic designs. Its construction and specifications make it a reliable choice for power supply filtering and energy storage applications.
The RoHS 3 compliant status and MSL 1 rating indicate standard compliance for many manufacturing processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance of the SPD73-223M is 22µH.
The SPD73-223M has a current rating of 1.1A.
The maximum DC resistance (DCR) for the SPD73-223M is 190mOhm.
The tolerance for the SPD73-223M is ±20%.
The SPD73-223M operates between -55°C and 125°C.
Yes, the SPD73-223M is a shielded inductor.
The SPD73-223M uses a drum core made of ferrite material.
