| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,500 pcs
|
1500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Shielding | |
| Tolerance | |
| Type | |
| Width |

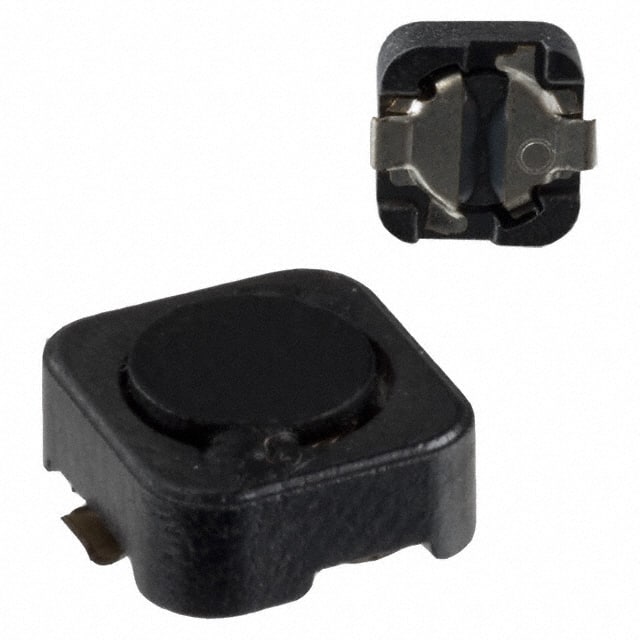

The API Delevan Inc. SPD62R-223M is a fixed inductor from the wirewound drum core series, offering a nominal inductance of 22µH and a maximum current rating of 1A. This shielded inductor has a DC resistance (DCR) of 400mOhm maximum and a tolerance of ±20%.
Designed for surface mounting, the SPD62R-223M operates within a temperature range of -55°C to 125°C. Its dimensions are 6.60mm in length, 6.20mm in width, and 3.00mm in height. The ferrite material construction ensures reliable performance in various applications.
This component is suitable for electronic circuits requiring stable inductance and current handling capabilities. Its shielded design helps minimize electromagnetic interference, making it a versatile choice for signal filtering and power applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.18 | $0.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal inductance is 22µH with ±20% tolerance.
The continuous current rating is 1A.
The maximum DC resistance is 400mOhm.
The operating temperature range is -55°C to +125°C.
Yes, it is a shielded inductor.
It is a surface mount device.
