| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15,054 pcs
|
15054 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Voltage |
The NXP Semiconductors SPC5747GK1CKU2 is a powerful 32-bit microcontroller designed for embedded applications. It features a tri-core processor architecture with e200z2 and e200z4 cores, capable of operating at speeds of 80MHz and 120MHz.
This microcontroller offers 4MB of FLASH program memory and 768KB of RAM, providing ample space for code and data. It supports a wide range of peripherals including DMA, LVD, POR, and WDT, along with various communication interfaces such as CANbus, Ethernet, I²C, LINbus, SAI, SPI, and USB.

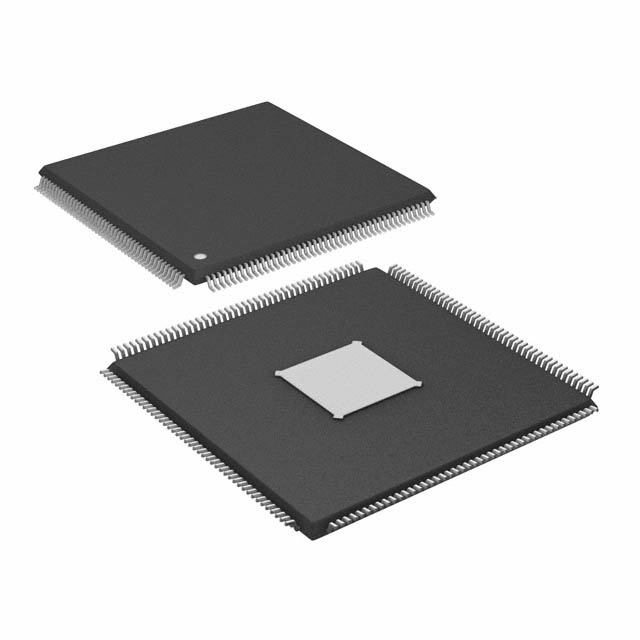

The SPC5747GK1CKU2 is housed in a 176-LQFP Exposed Pad package, suitable for surface mounting. It operates within a voltage range of 3V to 5.5V and has an operating temperature range of -40°C to 85°C.
The device includes 80x10-bit and 64x12-bit data converters and offers 129 I/O lines for flexible system integration. It is designed with an internal oscillator and meets RoHS3 compliance standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The program memory size is 4MB (4M x 8).
The RAM size is 768K x 8.
The operating speeds are 80MHz and 120MHz.
It comes in a 176-LQFP Exposed Pad package.
The operating temperature range is -40°C to 85°C (TA).
The operating voltage range is 3V to 5.5V.
