SPC564A80L7CFAR The STMicroelectronics SPC564A80L7CFAR is a 32-bit microcontroller featuring 4MB of FLASH program memory and 192KB of RAM. It operates at speeds up to 150MHz.
Mfr Part #:

SPC564A80L7CFAR

Available from 2 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STMicroelectronics SPC564A80L7CFAR is a 32-bit microcontroller featuring 4MB of FLASH program memory and 192KB of RAM. It operates at speeds up to 150MHz.
✓ Total Stock: 2,794 pcs
$ Price Range: $6.40

SPC564A80L7CFAR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
1,794 pcs
On Request
1794 pcs On Request 1 On Request On Request On Request On Request On Request
Seba Components ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SPC564A80L7CFAR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
Lead Spacing
Mounting Type
Number of I
Number of I/O
Operating Temperature
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Supplier Device Package
Voltage
Voltage Supply
View Similar Products (0)

SPC564A80L7CFAR Description

Short technical summary and product information.

The STMicroelectronics SPC564A80L7CFAR is a high-performance 32-bit single-core microcontroller based on the e200z4 core. It offers 4MB of FLASH program memory and 192KB of RAM, making it suitable for demanding embedded applications.



This microcontroller operates at a speed of 150MHz and supports various connectivity options including CANbus, EBI/EMI, LINbus, SCI, and SPI. It is equipped with peripherals such as DMA, POR, PWM, and WDT, and features 118 I/O lines. The device includes 34x12-bit Analog-to-Digital converters and an internal oscillator.

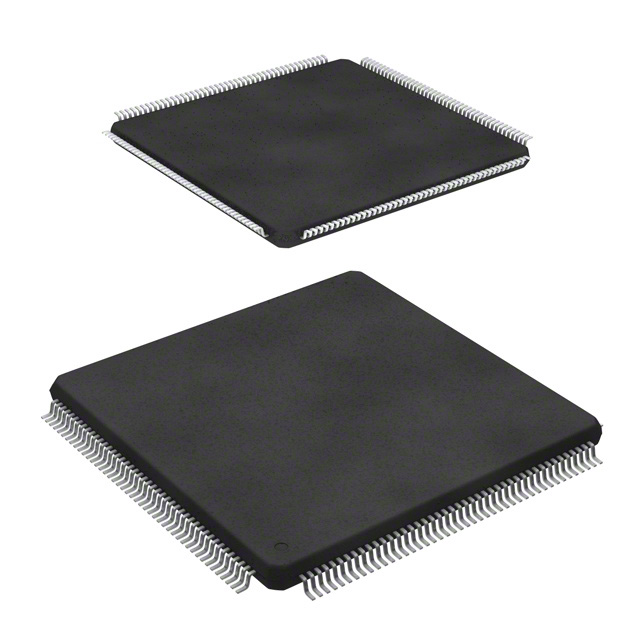

Designed for surface mounting, the SPC564A80L7CFAR comes in a 176-LQFP package. It operates within a temperature range of -40°C to 125°C (TA) and utilizes a supply voltage between 1.14V and 1.32V. Its robust feature set makes it a strong candidate for automotive and other embedded systems requiring reliable processing power and memory capacity.

SPC564A80L7CFAR Quick Information

Product Type: Microcontroller
Series: Automotive, AEC-Q100, SPC56
Canonical Name: SPC564A80L7CFAR 32-Bit Microcontroller
Subcategory: Embedded

SPC564A80L7CFAR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SPC564A80L7CFAR Estimated Pricing

Qty Low High
1+ $6.40 $6.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

SPC564A80L7CFAR Features

  • 32-bit single-core e200z4 processor
  • 150MHz operating speed
  • 4MB FLASH program memory
  • 192KB RAM
  • 176-LQFP surface mount package

SPC564A80L7CFAR Applications

  • Suitable for automotive applications
  • Embedded system processing
  • Control and data acquisition
  • Signal processing tasks

SPC564A80L7CFAR FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the SPC564A80L7CFAR?

The operating voltage is between 1.14V and 1.32V.

What package type is the SPC564A80L7CFAR supplied in?

The SPC564A80L7CFAR is supplied in a 176-LQFP package.

What is the operating temperature range for this microcontroller?

The operating temperature range is -40°C to 125°C (TA).

What is the RoHS status of the SPC564A80L7CFAR?

The RoHS status is ROHS3 Compliant.
