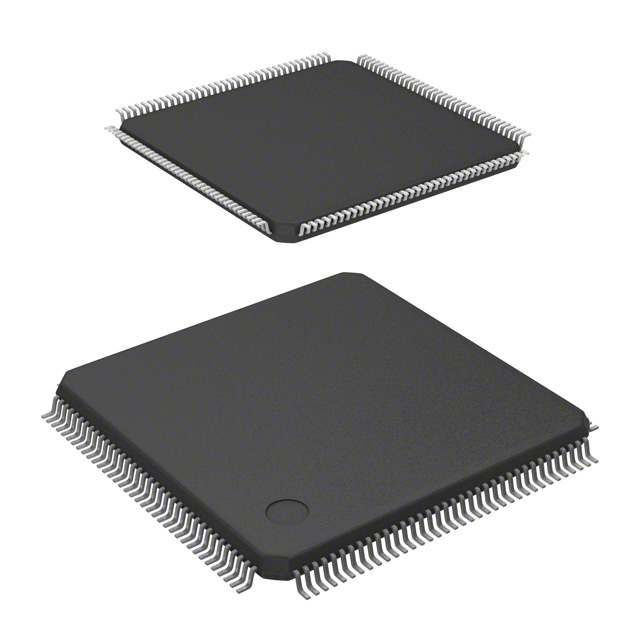

SPC560B50L5C6E0X The STMicroelectronics SPC560B50L5C6E0X is a 32-bit microcontroller designed for automotive applications. It offers a 64MHz clock speed and ample memory for complex tasks.
Mfr Part #:

SPC560B50L5C6E0X

Available from 1 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The STMicroelectronics SPC560B50L5C6E0X is a 32-bit microcontroller designed for automotive applications. It offers a 64MHz clock speed and ample memory for complex tasks.
✓ Total Stock: 2,400 pcs

SPC560B50L5C6E0X Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
2,400 pcs
On Request
2400 pcs On Request 1 On Request On Request 22+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SPC560B50L5C6E0X Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Connectivity
Core Processor
Industrial Grade
Lead Spacing
Lead Style
Mounting Type
Oscillator Type
Package / Case
Peripherals
RAM Size
SVHC Present
Storage Temperature
Tape & Reel
Voltage Range
View Similar Products (0)

SPC560B50L5C6E0X Description

Short technical summary and product information.

The SPC560B50L5C6E0X from STMicroelectronics is a high-performance 32-bit microcontroller built on the Power Architecture e200z0h core, operating at a frequency of 64MHz. This device is engineered for demanding automotive applications, providing robust processing capabilities.



It features 512KB of FLASH program memory and 32KB of RAM, ensuring sufficient space for sophisticated application code and efficient data handling. The microcontroller supports a wide supply voltage range of 3V to 5.5V, offering flexibility in power supply design. Connectivity is extensive, with support for protocols such as CANbus, I2C, LINbus, SCI, and SPI, along with 123 I/O pins for comprehensive system integration.



Designed for surface mount applications, the SPC560B50L5C6E0X is housed in a 144-LQFP package and is available in tape and reel format. Its robust feature set makes it suitable for applications including body electronics, powertrain control, safety systems, infotainment, and chassis control. The device also includes peripherals like DMA, POR, PWM, and WDT, enhancing its functionality for automotive environments.

SPC560B50L5C6E0X Quick Information

Product Type: Microcontroller
Series: SPC560B
Canonical Name: SPC560B50L5C6E0X Microcontroller
Subcategory: 32-bit

SPC560B50L5C6E0X Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): MSL 3 (168 Hours)
REACH Status: REACH Unaffected

SPC560B50L5C6E0X Features

  • High-performance 32-bit e200z0h core.
  • 64MHz clock speed for fast processing.
  • 512KB FLASH and 32KB RAM memory.
  • 123 I/O pins for extensive connectivity.
  • Supports CAN, I2C, LIN, SCI, and SPI.

SPC560B50L5C6E0X Applications

  • Ideal for automotive body electronics.
  • Suitable for powertrain control units.
  • Used in automotive safety systems.
  • Applicable for infotainment systems.
  • Designed for chassis control applications.

SPC560B50L5C6E0X FAQs

7 frequently asked questions generated from this part’s specifications.
What is the clock speed of the SPC560B50L5C6E0X microcontroller?

The SPC560B50L5C6E0X microcontroller operates at a clock speed of 64MHz.

How much FLASH program memory does the SPC560B50L5C6E0X have?

The SPC560B50L5C6E0X features 512KB of FLASH program memory.

What is the RAM size of the SPC560B50L5C6E0X?

The SPC560B50L5C6E0X has a RAM size of 32KB.

What is the supply voltage range for the SPC560B50L5C6E0X?

The SPC560B50L5C6E0X supports a supply voltage range of 3V to 5.5V.

What package type is the SPC560B50L5C6E0X available in?

The SPC560B50L5C6E0X is housed in a 144-LQFP package.

Does the SPC560B50L5C6E0X support RoHS compliance?

Yes, the SPC560B50L5C6E0X is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the SPC560B50L5C6E0X?

The Moisture Sensitivity Level (MSL) for the SPC560B50L5C6E0X is MSL 3 (168 Hours).
