| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
17 pcs
|
17 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
17 pcs
|
17 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Gender | |
| Height | |
| Housing Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Pitch | |
| Termination Style | |
| Type |

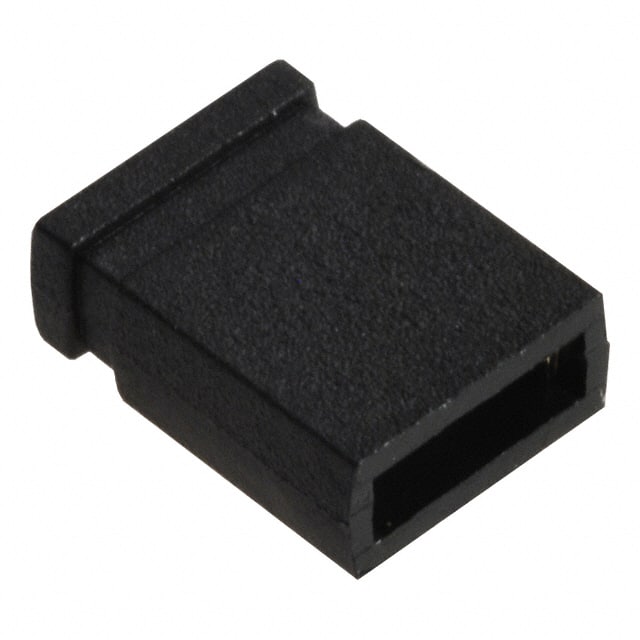

The SPC02SYAN is a 2-position closed top shunt (jumper) from Sullins Connector Solutions, designed for use with 2.54mm (0.100") pitch headers. It features a black PBT housing with UL94 V-0 flammability rating and dual beam phosphor bronze contacts with gold flash plating. The closed top design prevents accidental shorting and provides a clean, low-profile solution for configuration jumpers on PCBs.
Electrical specifications include a current rating of 3A per contact, maximum contact resistance of 20 mOhm, and minimum insulation resistance of 5000 MOhm. The operating temperature range is -55°C to +105°C, making it suitable for a wide variety of environments. The shunt is through-hole mount with solder termination.
Typical applications include shorting adjacent header pins for device configuration, address selection, or programming jumpers in prototyping, production, and test fixtures. The gold flash finish ensures reliable low-resistance connections over repeated insertion cycles.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.10 | $0.10 |
| 10+ | $0.03 | $0.03 |
| 25+ | $0.03 | $0.03 |
| 50+ | $0.03 | $0.03 |
| 100+ | $0.02 | $0.02 |
| 250+ | $0.02 | $0.02 |
| 500+ | $0.02 | $0.02 |
| 1,000+ | $0.02 | $0.02 |
| 3,000+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3A per contact.
2.54mm (0.100").
2 positions (1 x 2).
-55°C to +105°C.
20 mOhm maximum.
5000 MOhm minimum.
Polybutylene Terephthalate (PBT), black.
