| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
54 pcs
|
54 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Gender | |
| Height | |
| Housing Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Pitch | |
| Type |

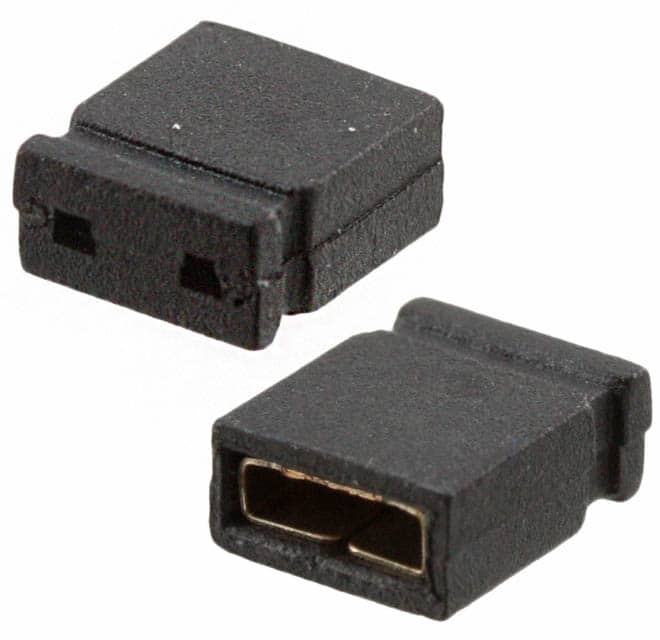

The SPC02SVGN-RC is a closed top shunt jumper from Sullins Connector Solutions, designed for use on 0.025 inch square pins. It features 2 positions on a 0.100 inch (2.54mm) pitch, making it suitable for shorting or programming applications on header strips.
This jumper is rated for 3 amps per contact with a maximum contact resistance of 30 milliohms and minimum insulation resistance of 1000 megohms. The operating temperature range is -40°C to +85°C. The insulator is made of PBT material with UL 94V-0 flammability rating.
Contacts are phosphor bronze with gold flash overall plating, providing reliable low-resistance connections. The closed top design protects the contact area from contamination. The part is RoHS compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.10 | $0.10 |
| 10+ | $0.08 | $0.08 |
| 25+ | $0.08 | $0.08 |
| 50+ | $0.07 | $0.07 |
| 100+ | $0.07 | $0.07 |
| 250+ | $0.07 | $0.07 |
| 500+ | $0.06 | $0.06 |
| 2,000+ | $0.06 | $0.06 |
| 4,000+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 positions (1 x 2).
2.54mm (0.100 inches).
3 amps per contact.
-40°C to +85°C.
Phosphor bronze with gold flash overall.
PBT insulator with UL 94V-0 rating.
Yes, RoHS3 compliant.
