| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,357 pcs
|
1357 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Class | |
| Current | |
| Data Rate | |
| Dimensions | |
| Frequency | |
| Height | |
| Length | |
| Memory Size | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Tape & Reel | |
| Utilized IC | |
| Voltage | |
| Width |

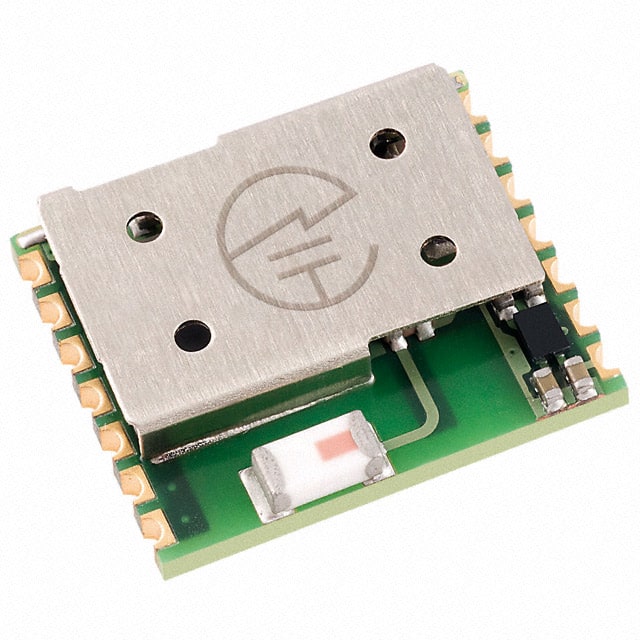

The STMicroelectronics SPBT2632C2A.AT2 is an RF transceiver module designed for Bluetooth 802.15.1 applications. It operates in the 2.4 GHz frequency band and supports Bluetooth 3.0 protocol.
Key electrical specifications include a data rate of 1.5 Mb/s, a sensitivity of -86 dBm, and an operating supply voltage range of 2.1V to 3.6V. The module utilizes the STLC2690 IC and offers integrated memory with 256kB Flash and 48kB RAM. It supports multiple serial interfaces including UART, I2C, and SPI.
This module features an integrated chip antenna and is designed for surface mount applications. It has a maximum operating temperature of +85°C and is supplied in a Tray package with a factory pack quantity of 144. The dimensions are 11.6 mm x 13.5 mm x 2.9 mm.
The SPBT2632C2A.AT2 is RoHS3 compliant and has an MSL of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.06 | $6.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating supply voltage range is 2.1V to 3.6V.
The data rate is 1.5 Mb/s.
The maximum operating temperature is +85°C.
The sensitivity is -86 dBm.
It supports Bluetooth 3.0.
The available serial interfaces are UART, I2C, and SPI.
The package type is Module, and it is a surface mount device.
