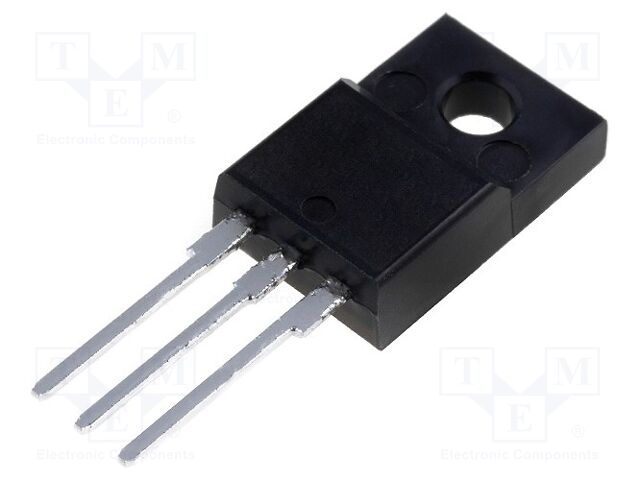

SPA20N60C3 The Infineon SPA20N60C3 is an N-Channel MOSFET transistor with a 600V drain-source voltage and 13.1A drain current. It features a low on-state resistance of 0.19 Ohms.
Mfr Part #:

SPA20N60C3

Available from 3 distributors
Mfr Name: Infineon
Infineon
The Infineon SPA20N60C3 is an N-Channel MOSFET transistor with a 600V drain-source voltage and 13.1A drain current. It features a low on-state resistance of 0.19 Ohms.
✓ Total Stock: 12,658 pcs
$ Price Range: $0.99

SPA20N60C3 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
9,227 pcs
On Request
9227 pcs On Request 1 On Request On Request 1327+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
3,421 pcs
On Request
3421 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SPA20N60C3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Lead Spacing
Mounting Type
Technology
View Similar Products (0)

SPA20N60C3 Description

Short technical summary and product information.

The Infineon SPA20N60C3 is a high-performance N-Channel MOSFET transistor designed for various power applications. It operates with a maximum drain-source voltage of 600V and can handle a continuous drain current of 13.1A.



This MOSFET utilizes CoolMOS™ technology and offers a low on-state resistance of 0.19 Ohms, contributing to efficient power switching. The gate-source voltage rating is ±20V.



Packaged in a PG-TO220-3-FP case, the SPA20N60C3 is designed for through-hole mounting (THT). It is supplied in tubes with a standard package quantity of 50 pieces.

SPA20N60C3 Quick Information

Product Type: N-Channel MOSFET Transistor
Canonical Name: Infineon Technologies SPA20N60C3 N-Channel MOSFET
Subcategory: N-Channel

SPA20N60C3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SPA20N60C3 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

SPA20N60C3 Features

  • N-Channel MOSFET transistor.
  • 600V drain-source voltage rating.
  • 13.1A continuous drain current.
  • 0.19 Ohm on-state resistance.
  • PG-TO220-3-FP package for THT mounting.

SPA20N60C3 Applications

  • Power supply circuits.
  • Motor control applications.
  • Switching power supplies.
  • General purpose power switching.

SPA20N60C3 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the drain-source voltage of the SPA20N60C3?

The drain-source voltage is 600V.

What is the continuous drain current for the SPA20N60C3?

The continuous drain current is 13.1A.

What is the on-state resistance of the SPA20N60C3?

The on-state resistance is 0.19 Ohms.

What type of package is the SPA20N60C3 in?

The SPA20N60C3 is in a PG-TO220-3-FP package.

How is the SPA20N60C3 mounted?

The SPA20N60C3 is mounted using the THT (Through Hole) method.

What is the RoHS status of the SPA20N60C3?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the SPA20N60C3?

The Moisture Sensitivity Level is 1 Unlimited.
