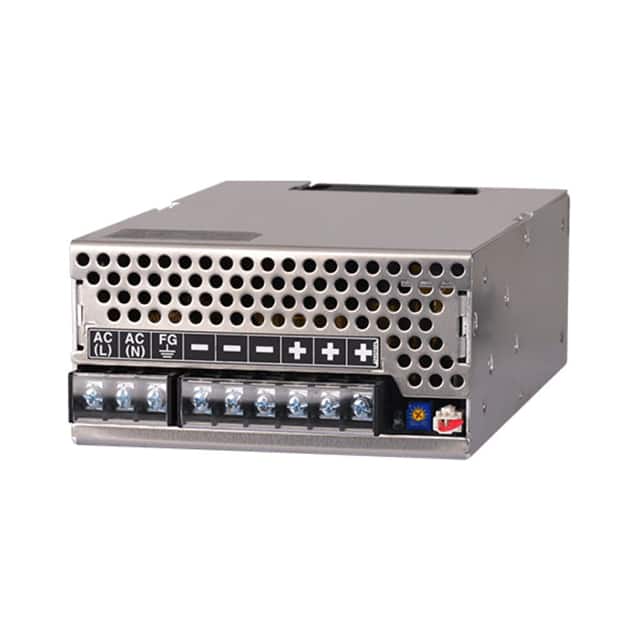

The Autonics SPA-400-24 is an enclosed AC/DC converter designed for reliable power conversion. It delivers 401W of power with a 24V output voltage.
Key features include adjustable output, power factor correction (PFC), and remote on/off control, making it suitable for various applications. This converter has a universal input and an efficiency rating of 85%.
Designed for chassis mounting, the SPA-400-24 has dimensions of 160.0mm x 97.0mm x 42.0mm. It operates within a temperature range of -10°C to 50°C with derating and meets the 60950-1 standard. The unit is CE approved and suitable for ITE (Commercial) applications.
Environmental compliance includes RoHS3 compliance, MSL 1, and REACH unaffected status.
The SPA-400-24 provides a single output of 24V DC at 16.7A, delivering 401W of power.
The efficiency is 85%.
The operating temperature range is -10°C to 50°C with derating.
It is designed for chassis mount installation.
The dimensions are 160.0mm x 97.0mm x 42.0mm (6.30" x 3.82" x 1.65").
Features include adjustable output, power factor correction (PFC), remote on/off, and universal input.
The product is CE approved and complies with standard number 60950-1.
