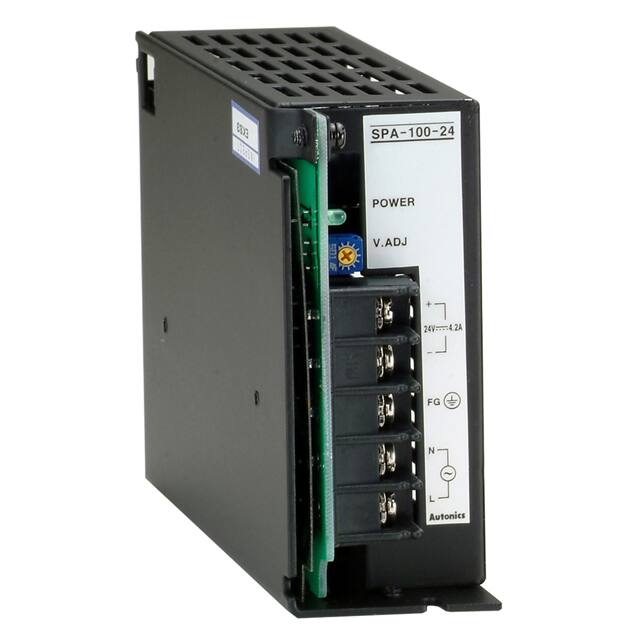

The Autonics SPA-100-24 is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a power output of 101W with a current rating of 4.2A.
Key electrical specifications include a universal input and an adjustable output feature, along with a 3 kV voltage rating. The converter operates efficiently at 80% and is compliant with standard number 60950-1.
Mechanically, this unit is designed for chassis mounting and has dimensions of 160.0mm in length, 97.0mm in width, and 42.0mm in height. The operating temperature range is -10°C to 50°C, with derating applied.
Environmental compliance includes RoHS3 compliance, an MSL rating of 1, and REACH unaffected status. The approval agency is CE.
The Autonics SPA-100-24 provides a single 24V output at 4.2A.
The SPA-100-24 has a power rating of 101W.
The operating temperature range is -10°C to 50°C with derating.
The SPA-100-24 uses chassis mount mounting.
The dimensions are 160.0mm in length, 97.0mm in width, and 42.0mm in height.
The SPA-100-24 achieves 80% efficiency.
The SPA-100-24 is CE approved and complies with standard number 60950-1.
