Mfr Part #:

SP80U-0533T

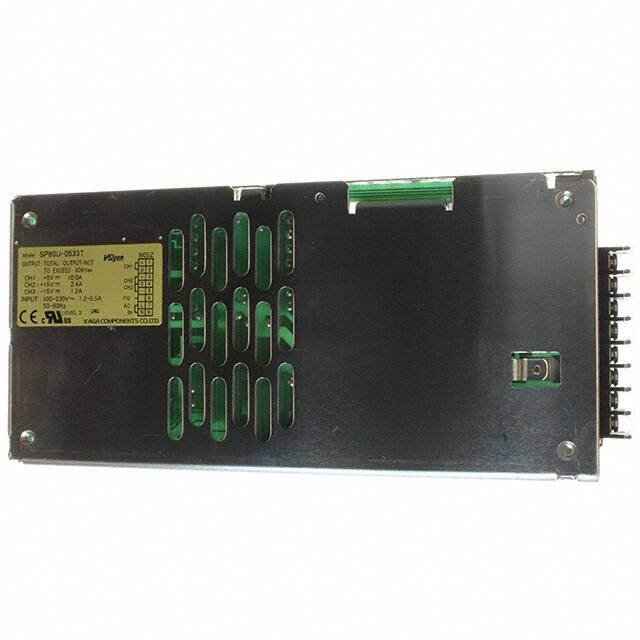

The Kaga Electronics USA SP80U-0533T is an 80W AC/DC converter. It features 3 outputs and a chassis mount type.

Stock on Request

SP80U-0533T Description

Short technical summary and product information.

The SP80U-0533T from Kaga Electronics USA is an enclosed AC/DC converter with a power rating of 80W. This unit is designed for chassis mounting and offers three outputs, including a -15V output. It operates within a temperature range of 0°C to 60°C with derating.

Key features include adjustable output, DC input capability, Power Factor Correction (PFC), and universal input. The converter measures 190.0mm in length, 100.0mm in width, and 40.1mm in height. It is suitable for ITE (Commercial) applications and carries approvals from CE, CSA, cUL, and UL.

This RoHS3 compliant converter has a Moisture Sensitivity Level (MSL) of 1 and is REACH unaffected.

SP80U-0533T Quick Information

Product Type: AC DC Converter

Canonical Name: SP80U-0533T AC/DC Converter

Subcategory: AC DC Converters

SP80U-0533T Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

SP80U-0533T Features

80W power output capability.
Enclosed type with chassis mount.
Features adjustable output and PFC.
Universal input and DC input capable.
CE, CSA, cUL, UL approved.

SP80U-0533T Applications

Ideal for industrial power systems requiring multiple voltage rails.
Suitable for equipment needing 5V and ±15V supplies.
Used in applications where chassis mount form factor is required.
Can be used in systems with universal AC input.

SP80U-0533T FAQs

6 frequently asked questions generated from this part’s specifications.

What is the power rating of the SP80U-0533T?

The power rating is 80W.

What type of mounting does the SP80U-0533T use?

It uses chassis mount.

What is the operating temperature range?

The operating temperature is 0°C to 60°C (With Derating).

Is the SP80U-0533T RoHS compliant?

Yes, it is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The MSL is 1 Unlimited.

Does the SP80U-0533T have adjustable output?

Yes, it features adjustable output.

Category	AC DC Converters
Manufacturer Name	Kaga Electronics USA
AEC Qualified	No
Applications	ITE (Commercial)
Approval Agency	CE, CSA, cUL, UL
Automotive Grade	No
Current	1.2A
Features	Adjustable Output, DC Input Capable, PFC, Universal Input
Height	40.1mm (1.58")
Industrial Grade	No
Length	190.0mm (7.48")
Medical Grade	No
Military Grade	No
Mounting Type	Chassis Mount
Number of Outputs	3
Operating Temperature	0°C ~ 60°C (With Derating)
Power (Watts)	80W
Type	Enclosed
Voltage	-15V
Width	100.0mm (3.94")
