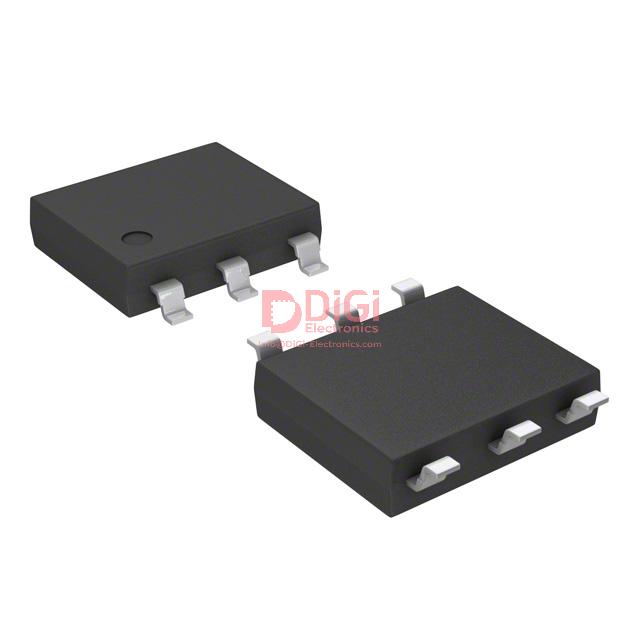

The Littelfuse SP725AATG is a TVS Diode Array from the SPA® Devices series, specifically designed for general-purpose ESD and over-voltage protection of sensitive input circuits. This device offers robust protection with ESD interface capabilities per HBM standards up to 8kV (Direct Discharge) and 15kV (Air Discharge), and MIL-STD-3015.7 up to 25kV.
Key electrical characteristics include a peak pulse current capability of ±9A (8/20 µs) and ±4A (100 µs pulse width). It is designed to provide over-voltage protection with a single-ended voltage range up to +30V and a differential voltage range up to ±15V. The array features fast switching with a 2ns risetime and low input leakage of only 5nA at 25°C, with a typical input capacitance of 5pF.
This device contains an array of 4 SCR/Diode pairs, offering 2 protection structures per input for up to 4 external signal or bus lines. The operating temperature range is from -40°C to 105°C. The SP725AATG is suitable for applications such as microprocessor/logic input protection, data bus protection, and analog device input protection.
It is packaged in a 10-MSOP (0.118", 3.00mm Width) surface mount package and is supplied on tape and reel.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SP725AATG offers ESD interface protection per HBM standards of 8kV (Direct Discharge) and 15kV (Air Discharge) according to IEC 61000-4-2, and 25kV according to MIL-STD-3015.7.
The peak pulse current capability is ±9A for an 8/20 µs waveform (IEC 61000-4-5) and ±4A for a single transient pulse with a 100 µs pulse width.
The SP725AATG provides over-voltage protection with a single-ended voltage range up to +30V and a differential voltage range up to ±15V.
The typical input capacitance for the SP725AATG is 5pF.
The SP725AATG features an array of 4 SCR/Diode pairs, providing protection for up to 4 external signal or bus lines.
The operating temperature range for the SP725AATG is -40°C to 105°C.
The SP725AATG is available in a 10-MSOP (0.118", 3.00mm Width) surface mount package, supplied on tape and reel.
