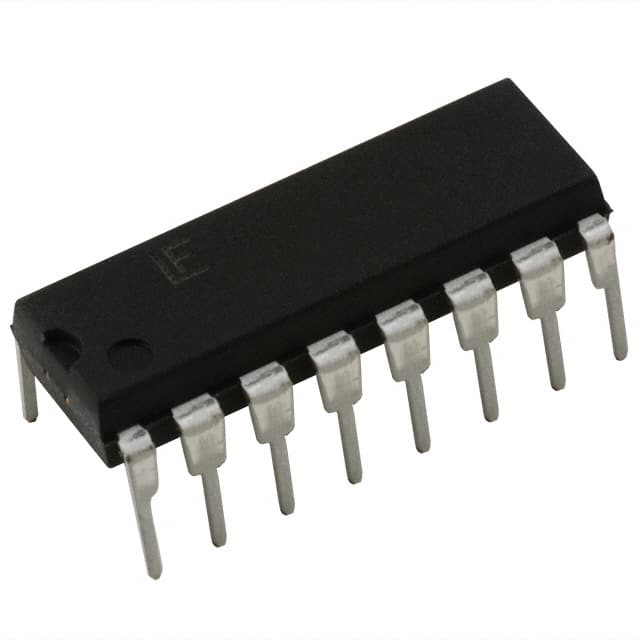

SP720AP The SP720AP is a 14-input TVS diode array from Littelfuse Inc. designed for ESD and over-voltage protection. It features 15kV HBM ESD protection, low 3pF capacitance, and fast 2ns rise time.
Mfr Part #:

SP720AP

Available from 3 distributors
Mfr Name: Littelfuse Inc.
Littelfuse Inc.
The SP720AP is a 14-input TVS diode array from Littelfuse Inc. designed for ESD and over-voltage protection. It features 15kV HBM ESD protection, low 3pF capacitance, and fast 2ns rise time.
✓ Total Stock: 10,309 pcs

SP720AP Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
7,870 pcs
On Request
7870 pcs On Request 1 On Request On Request 07+0345+ On Request On Request
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
2,356 pcs
On Request
2356 pcs On Request 1 On Request On Request On Request On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
83 pcs
On Request
83 pcs On Request 1 On Request On Request 03+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SP720AP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Applications
Automotive Grade
Capacitance
Halogen Free
Industrial Grade
Medical Grade
Military Grade
Mounting Type
Number of Circuits
Operating Temperature
SVHC Present
Supplier Device Package
Tape & Reel
Technology
View Similar Products (0)

SP720AP Description

Short technical summary and product information.

The SP720AP is a mixed technology TVS diode array from Littelfuse Inc. It integrates 14 SCR/Diode structures to protect up to 14 signal or bus lines from ESD and over-voltage transients. The device is housed in a 16-DIP through-hole package.



Key electrical specifications include ESD protection up to 15kV HBM (MIL STD 3015.7) and 15kV air discharge (IEC 61000-4-2 Level 4). Peak pulse current capability is ±3A (8/20µs), ±2A (100µs), and ±5A (4µs). Maximum single-ended voltage is 30V, differential voltage is ±15V. Low leakage current of 1nA typical and low input capacitance of 3pF typical minimize signal degradation. Rise time is 2ns.



The device operates over a temperature range of -40°C to 105°C. It is suitable for general purpose applications requiring robust ESD protection. The through-hole 16-DIP package allows easy integration into PCB designs.

SP720AP Quick Information

Product Type: TVS Diode Array
Series: SP720
Canonical Name: SP720AP TVS Diode Array (Mixed Technology) for ESD Protection
Subcategory: ESD Protection Array

SP720AP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: No

SP720AP Features

  • 14 input SCR/Diode ESD protection array.
  • 15kV HBM and 15kV air discharge ESD rating.
  • Low 3pF input capacitance for high-speed signals.
  • Fast 2ns rise time for transient response.
  • Through-hole 16-DIP package for easy mounting.

SP720AP Applications

  • Protect up to 14 signal or bus lines.
  • Ideal for general purpose ESD protection.
  • Suitable for industrial and consumer electronics.
  • Use in systems requiring IEC 61000-4-2 compliance.

SP720AP FAQs

7 frequently asked questions generated from this part’s specifications.
What is the peak pulse current capability of the SP720AP?

The SP720AP can handle ±3A (8/20µs), ±2A (100µs), and ±5A (4µs) peak pulse currents.

What package does the SP720AP come in?

The SP720AP is available in a 16-DIP through-hole package (16-PDIP).

What ESD protection levels does the SP720AP provide?

It provides 15kV HBM (MIL STD 3015.7), 4kV direct discharge (IEC 61000-4-2 Level 2), 8kV direct discharge two inputs in parallel (Level 4), and 15kV air discharge (Level 4).

What is the input capacitance of the SP720AP?

Typical input capacitance is 3pF.

What is the operating temperature range?

-40°C to 105°C.

What is the leakage current?

Typical leakage current is 1nA at 25°C.

What are the voltage ratings?

Maximum single-ended voltage is 30V, differential voltage is ±15V.
