| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,500 pcs
|
3500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Data Rate | |
| Duplex | |
| Lead Spacing | |
| Mounting Type | |
| Number of Drivers | |
| Operating Temperature | |
| Protocol | |
| Receiver Hysteresis | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage |
The MaxLinear SP485CS-L is an integrated circuit designed for serial communication, functioning as a half-duplex transceiver. It supports both RS422 and RS485 communication protocols, making it versatile for various industrial and data transmission applications.
This transceiver operates within a voltage range of 4.75V to 5.25V and can handle data rates up to 5Mbps. It features one driver and one receiver, with receiver hysteresis specified at 10mV. The operating temperature range is from 0°C to 70°C.

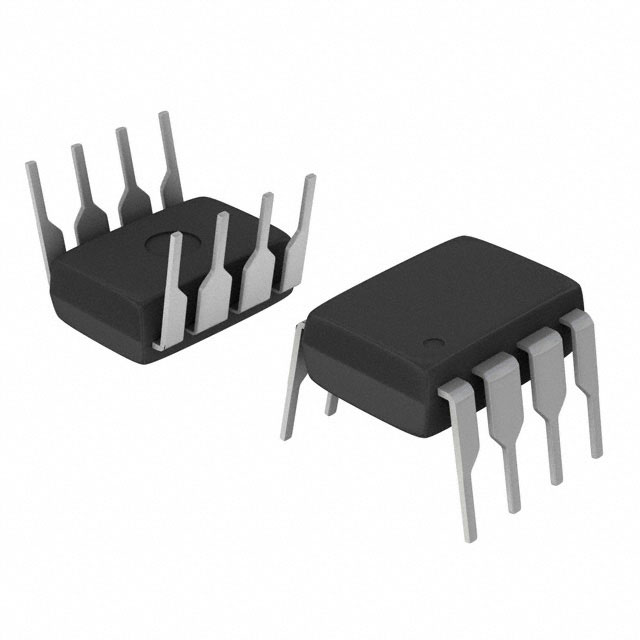

The SP485CS-L is packaged in an 8-PDIP configuration, designed for through-hole mounting. This mounting type is suitable for applications requiring robust connections and ease of assembly on printed circuit boards.
Key specifications include its half-duplex capability, support for standard serial communication protocols, and a compact 8-pin package. Its operating parameters make it suitable for applications requiring reliable data transfer in moderate temperature environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.44 | $1.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SP485CS-L operates within a voltage range of 4.75V to 5.25V.
The SP485CS-L is available in an 8-PDIP package.
The SP485CS-L has an operating temperature range of 0°C to 70°C.
The SP485CS-L supports RS422 and RS485 protocols.
The SP485CS-L can achieve a data rate of 5Mbps.
The SP485CS-L has 1 driver and 1 receiver.
The receiver hysteresis of the SP485CS-L is 10mV.
