| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
478 pcs
|
478 pcs | On Request | 1 | On Request | On Request | 16+ | On Request | On Request | |
|
428 pcs
|
428 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Power Line Protection | |
| SVHC Present | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Unidirectional Channels | |
| Voltage |
The SP3304NUTG is a 4-channel steering (rail-to-rail) TVS diode from Littelfuse Inc., designed for Ethernet applications. It provides unidirectional protection with a maximum clamping voltage of 11.5V at peak pulse current. The device can handle a peak pulse current of 20A (8/20µs waveform) and a peak pulse power of 300W, ensuring robust transient protection. Power line protection is included.

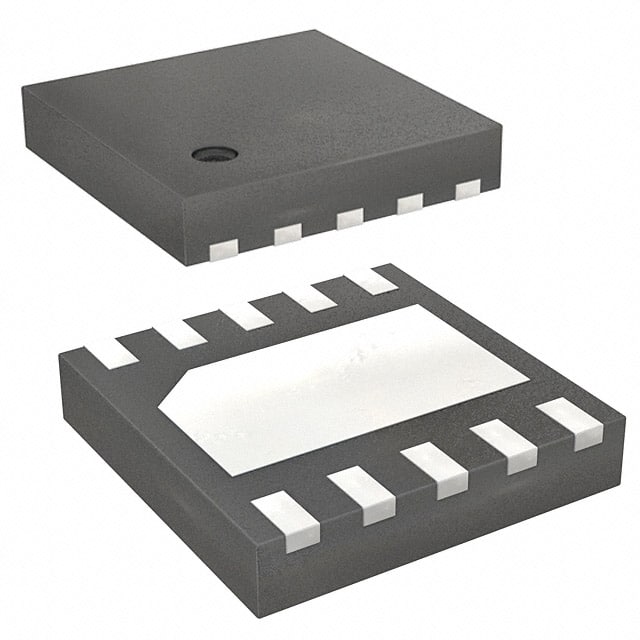

The SP3304NUTG is housed in a surface-mount 10-UFDFN exposed pad package, also designated as 10-UDFN (2.6x2.6mm). It operates over a temperature range of -40°C to 125°C. The component is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.03 | $2.03 |
| 10+ | $1.30 | $1.30 |
| 100+ | $0.87 | $0.87 |
| 500+ | $0.74 | $0.74 |
| 3,000+ | $0.74 | $0.74 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum clamping voltage is 11.5V at peak pulse current.
20A (8/20µs waveform).
10-UFDFN Exposed Pad (10-UDFN 2.6x2.6).
4 unidirectional channels.
-40°C to 125°C.
Yes.
Ethernet applications.
