| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20,000 pcs
|
20000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Applications | |
| Bidirectional Channels | |
| Capacitance @ Frequency | |
| Clamping Voltage | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Power Line Protection | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage |

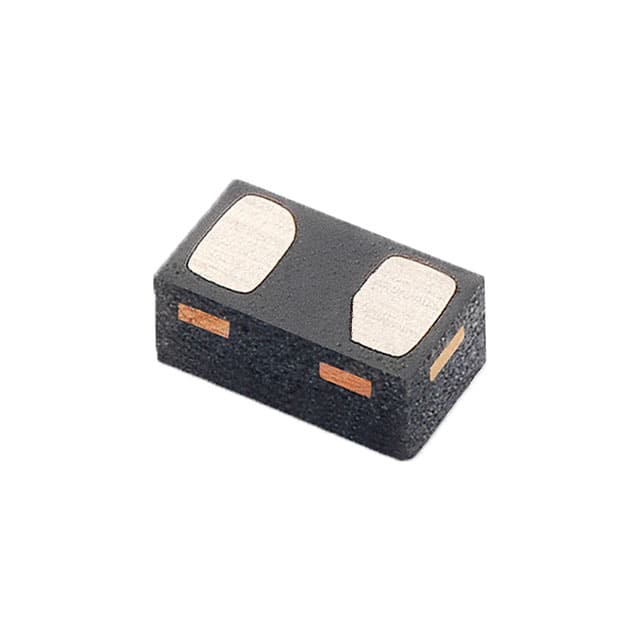

The SP3213-01UTG is a bidirectional Zener TVS diode designed for ESD and transient voltage protection in general purpose applications. It offers a reverse standoff voltage of 5V and a clamping voltage of 18V at a peak pulse current of 2A (8/20µs waveform). The ultra-low capacitance of 0.09pF at 1MHz makes it suitable for high-speed data lines without signal degradation.
This diode is packaged in a compact 0201 (0603 Metric) surface mount package, also designated as 0201/DFN0603, enabling space-efficient designs in portable electronics. It operates over a temperature range of -40°C to 125°C and is not intended for power line protection. The single bidirectional channel provides symmetrical protection for both positive and negative transients.
Key specifications include a 5V reverse standoff voltage, 18V clamping voltage, 2A peak pulse current, and 0.09pF capacitance. The device is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited). Surface mount mounting allows for automated assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.70 | $0.70 |
| 10+ | $0.43 | $0.43 |
| 100+ | $0.28 | $0.28 |
| 500+ | $0.21 | $0.21 |
| 1,000+ | $0.19 | $0.19 |
| 2,500+ | $0.17 | $0.17 |
| 10,000+ | $0.16 | $0.16 |
| 15,000+ | $0.16 | $0.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The reverse standoff voltage is 5V.
The clamping voltage is 18V.
The peak pulse current is 2A (8/20µs waveform).
The package is 0201 (0603 Metric), also known as 0201/DFN0603.
The capacitance is 0.09pF at 1MHz.
Yes, it has 1 bidirectional channel.
The operating temperature range is -40°C to 125°C.
