Mfr Part #:

SP30U-05S

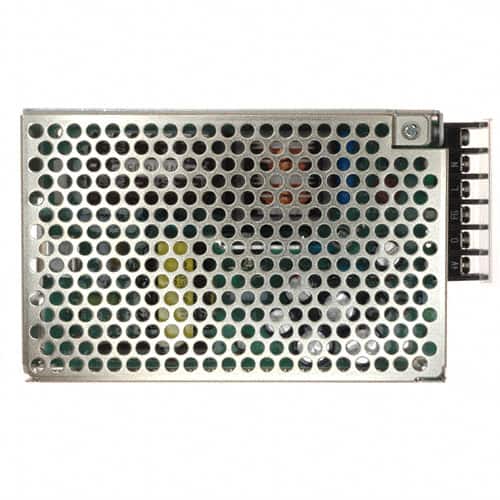

The Kaga Electronics USA SP30U-05S is a 30W AC/DC converter with a 230V input and 5V output. It features a chassis mount type and adjustable output.

Stock on Request

SP30U-05S Description

Short technical summary and product information.

This Kaga Electronics USA SP30U-05S is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a 30W power output with a 5V output voltage from a 230V input.

The converter features adjustable output, DC input capability, and universal input. It is designed for chassis mounting and operates within a temperature range of 0°C to 60°C with derating. The unit has an efficiency of 72% and a current rating of 6A.

Key specifications include dimensions of 124.0mm x 79.0mm x 33.0mm. It is approved by CE, cUL, TUV, and UL. The product has one output and is RoHS3 Compliant, REACH Unaffected, and has an MSL of 1 Unlimited.

SP30U-05S Quick Information

Product Type: AC DC Converter

Canonical Name: Kaga Electronics USA SP30U-05S AC/DC Converter

Subcategory: AC DC Converters

SP30U-05S Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

SP30U-05S Features

30W power output with 5V output voltage.
230V AC input, suitable for universal input.
Chassis mount type for easy integration.
Operates from 0°C to 60°C with derating.
Features adjustable output and DC input capability.

SP30U-05S Applications

Used in commercial ITE equipment power supplies
Suitable for 5V DC output applications
Ideal for chassis-mounted power conversion
Works with universal AC or DC input sources

SP30U-05S FAQs

6 frequently asked questions generated from this part’s specifications.

What is the input voltage for the Kaga SP30U-05S?

The input voltage is 230V.

What is the output voltage of the Kaga SP30U-05S?

The output voltage is 5V.

What is the power rating of the Kaga SP30U-05S?

The power rating is 30W.

What type of mounting does the Kaga SP30U-05S use?

It uses a chassis mount.

What is the operating temperature range for this power supply?

The operating temperature is 0°C to 60°C (With Derating).

What are the dimensions of the Kaga SP30U-05S?

The dimensions are 124.0mm x 79.0mm x 33.0mm.

Category	AC DC Converters
Manufacturer Name	Kaga Electronics USA
Applications	ITE (Commercial)
Approval Agency	CE, cUL, TUV, UL
Current	6 A
Efficiency	72%
Features	Adjustable Output, DC Input Capable, Universal Input
Height	33.0mm (1.30")
Industrial Grade	Yes
Input Voltage	230V
Length	124.0mm (4.88")
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature	0°C ~ 60°C (With Derating)
Output Voltage	5V
Power (Watts)	30W
Type	Enclosed
Voltage	3 kV
Width	79.0mm (3.11")
