| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

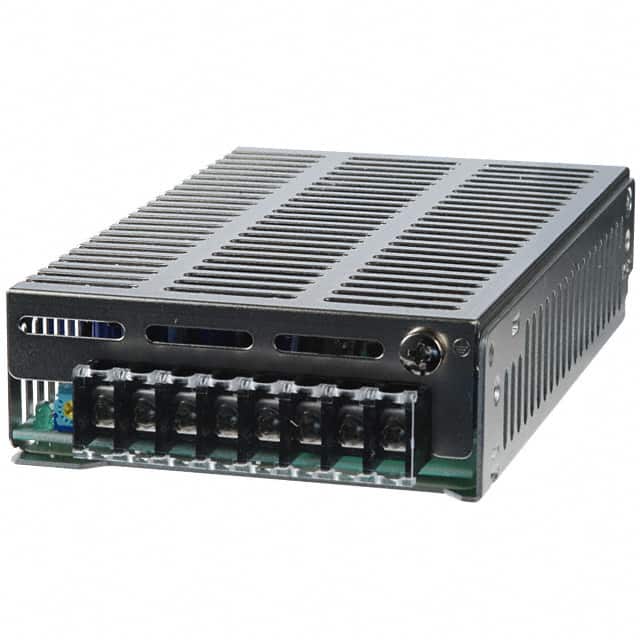

This Kaga Electronics USA SP30U-0533T is an enclosed AC/DC converter designed for commercial ITE applications. It delivers a total of 30W across three outputs: a 5V main output, a +15V secondary output, and a -15V tertiary output. The unit accepts a wide input voltage range from 85 to 264 VAC, making it suitable for global use.
Key electrical specifications include a typical input current of 0.7A at 100/240V and an inrush current of 15A. The converter offers line regulation of 0.4% and load regulation of 1% for all outputs. It provides 3000 VAC isolation between primary and secondary, 1500 VAC between primary and case, and 500 VAC between secondary and case. The MTBF is rated at 200,000 hours.
Designed for chassis mounting, the SP30U-0533T has dimensions of 149.0mm x 88.9mm x 33.0mm. It operates within a temperature range of 0°C to 60°C, with derating applied above 50°C. The temperature coefficient is ±0.02% / °C. This model includes built-in over-voltage and over-current protection on the 5V output.
The SP30U-0533T has three outputs: 5V, +15V, and -15V.
The total power output for the SP30U-0533T is 30W.
The SP30U-0533T accepts an input voltage range of 85-264 VAC.
The operating temperature range is 0°C to 60°C, with derating applied after 50°C.
The SP30U-0533T is designed for chassis mounting.
