| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
36,000 pcs
|
36000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | 22+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Power Line Protection | |
| Reverse Standoff Voltage | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Unidirectional Channels | |
| Voltage |

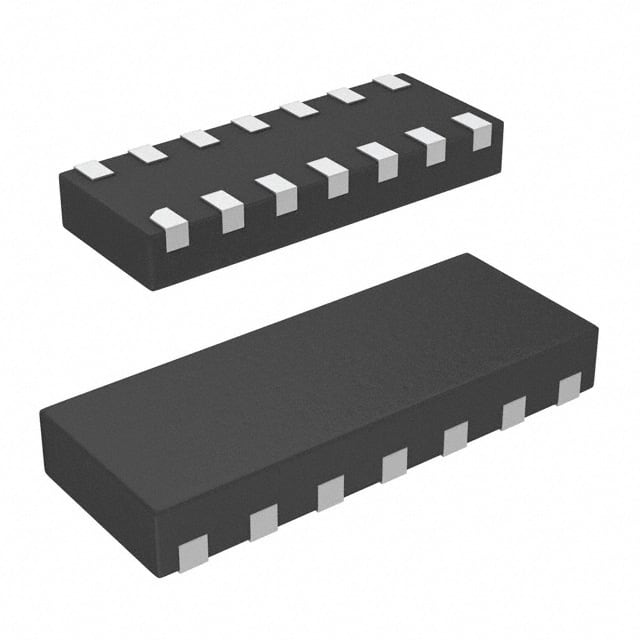

The Littelfuse SP3011-06UTG is a steering (rail to rail) TVS diode designed for general purpose circuit protection. It features 6 unidirectional channels with a reverse standoff voltage of 6V and a maximum clamping voltage of 12.5V. The device can handle peak pulse currents up to 3A under 8/20µs waveform conditions. It includes power line protection capability.
The SP3011-06UTG is housed in a 14-UFDFN surface mount package with a supplier device package of 14-UDFN (3.5x1.35). It operates over a temperature range of -40°C to 125°C (TJ). This component is suitable for protecting sensitive electronics from transient voltage events in a variety of applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.15 | $1.15 |
| 10+ | $0.93 | $0.93 |
| 100+ | $0.70 | $0.70 |
| 500+ | $0.58 | $0.58 |
| 1,000+ | $0.51 | $0.51 |
| 3,000+ | $0.46 | $0.46 |
| 6,000+ | $0.44 | $0.44 |
| 24,000+ | $0.41 | $0.41 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6V.
12.5V maximum.
3A under 8/20µs waveform.
6 unidirectional channels.
Steering (rail to rail).
-40°C to 125°C (TJ).
14-UFDFN surface mount package (14-UDFN 3.5x1.35).
