| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
26,200 pcs
|
26200 pcs | On Request | 1 | On Request | On Request | 16+17+ | On Request | On Request | |
|
294 pcs
|
294 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Capacitance @ Frequency | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Power Line Protection | |
| Reverse Standoff Voltage | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Unidirectional Channels | |
| Voltage |
The SP2574NUTG is a steering (rail to rail) TVS diode from Littelfuse Inc. designed for overvoltage protection in automotive and Ethernet applications. It features 4 unidirectional channels with a reverse standoff voltage of 2.5V and a maximum clamping voltage of 12V. The device can handle peak pulse currents up to 25A (8/20 µs waveform) and peak pulse power up to 1000W (1kW).
With a typical capacitance of 3.8 pF at 1 MHz, this diode is suitable for high-speed data line protection. It includes power line protection and operates over a junction temperature range of -40°C to 125°C.

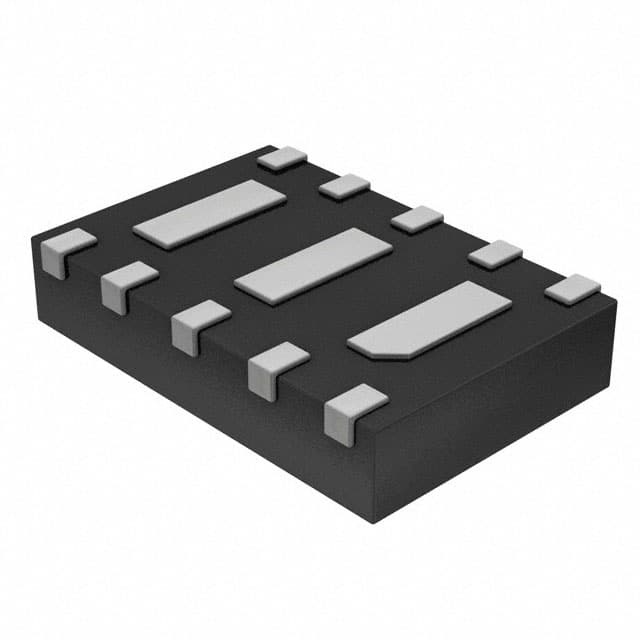

The component is offered in a 10-UDFN exposed pad package (supplier device package 10-UDFN 3x2) and is surface mount compatible. It is RoHS3 compliant and has an MSL of Level 1 (unlimited).
The reverse standoff voltage is 2.5V.
The maximum clamping voltage is 12V.
The maximum peak pulse current is 25A (8/20 µs waveform).
It comes in a 10-UDFN exposed pad package (supplier device package 10-UDFN 3x2).
It has 4 unidirectional channels.
The operating junction temperature range is -40°C to 125°C.
The typical capacitance is 3.8 pF at 1 MHz.
