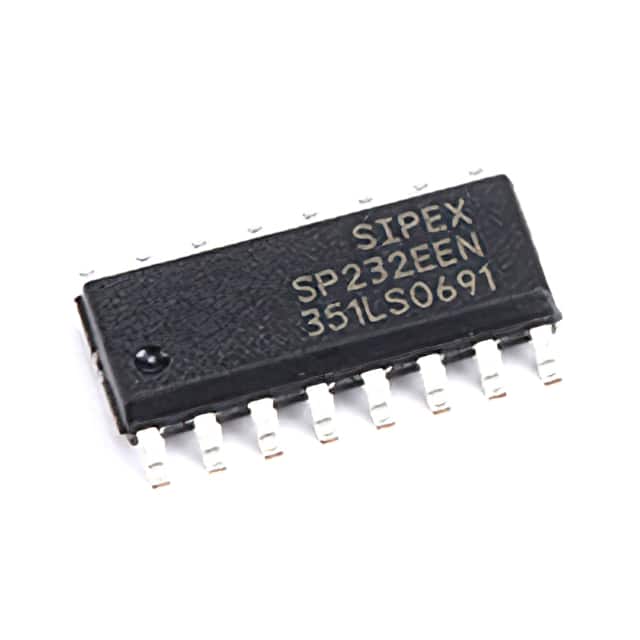

SP232EEN The UMW SP232EEN is a surface mount RS232 transceiver featuring 2 drivers and 2 receivers. It operates from a single +5V supply at data rates up to 120kbps.
Mfr Part #:

SP232EEN

Available from 1 distributors
Mfr Name: UMW (Youtai Semiconductor)
UMW (Youtai Semiconductor)
The UMW SP232EEN is a surface mount RS232 transceiver featuring 2 drivers and 2 receivers. It operates from a single +5V supply at data rates up to 120kbps.
✓ Total Stock: 5,000 pcs
$ Price Range: $1.44

SP232EEN Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SP232EEN Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Data Rate
Duplex
ESD Protection
Mounting Type
Number of Drivers
Operating Temperature
Operating Voltage
Protocol
Supplier Device Package
Supplier Package
Type
Voltage
View Similar Products (0)

SP232EEN Description

Short technical summary and product information.

The UMW SP232EEN is an RS232 transceiver IC designed for reliable serial communication. It operates from a single +5V power supply, making it suitable for various applications.



This transceiver supports data rates up to 120kbps and meets EIA/TIA-232E and CCITT V.28 specifications. It features 2 drivers and 2 receivers, providing full duplex communication. The device is designed for latch-up free operation and includes ESD protection up to ±2kV.



Packaged in a 16-SOIC format, the SP232EEN is designed for surface mounting. Its operating temperature range is -40°C to 85°C (TA), ensuring performance in diverse environmental conditions. The voltage range is 4.5V to 5.5V.

SP232EEN Quick Information

Product Type: RS232 Transceiver
Canonical Name: SP232EEN RS232 Transceiver
Subcategory: RS232 Transceiver

SP232EEN Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SP232EEN Estimated Pricing

Qty Low High
1+ $1.44 $1.44

Estimated market price range - modelled values for guidance only, not live distributor offers.

SP232EEN Features

  • Operates from single +5 V power supply.
  • Guaranteed 120 kbps data rate.
  • Features 2 drivers and 2 receivers.
  • Surface mount 16-SOIC package.
  • Wide operating temperature range.

SP232EEN Applications

  • Serial communication interfaces.
  • Embedded system design.
  • Industrial control systems.
  • Data acquisition systems.

SP232EEN FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the SP232EEN?

The SP232EEN operates from a 4.5V to 5.5V supply.

What is the data rate of the SP232EEN transceiver?

The SP232EEN supports data rates up to 120kbps.

What package type is the SP232EEN available in?

The SP232EEN is available in a 16-SOIC (0.154", 3.90mm Width) surface mount package.

What is the operating temperature range for the SP232EEN?

The operating temperature range for the SP232EEN is -40°C to 85°C (TA).
