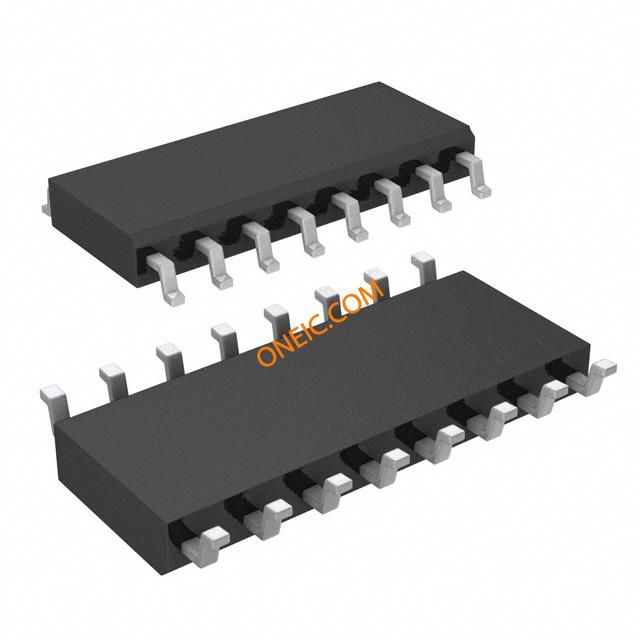

SP232AEN-L/TR The Exar SP232AEN-L/TR is a dual transmitter/receiver RS-232 interface IC. It operates at 5V and offers a data rate of 240Kbps.
Mfr Part #:

SP232AEN-L/TR

Available from 1 distributors
Mfr Name: Exar
Exar
The Exar SP232AEN-L/TR is a dual transmitter/receiver RS-232 interface IC. It operates at 5V and offers a data rate of 240Kbps.
✓ Total Stock: 500 pcs
$ Price Range: $2.20

SP232AEN-L/TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
500 pcs
On Request
500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SP232AEN-L/TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Data Rate
Height
Interface
Lead Spacing
Lead Style
Length
Mounting Type
Number of Drivers
Number of Pins
Receiver Hysteresis
Supply Current
Tape & Reel
Termination Style
Width
View Similar Products (0)

SP232AEN-L/TR Description

Short technical summary and product information.

The Exar SP232AEN-L/TR is a dual transmitter/receiver IC designed for RS-232 communication interfaces. It operates on a single 5V supply, with a voltage range of 4.5V to 5.5V, and supports a data rate of up to 240Kbps.



This device features 2 transmitters and 2 receivers, adhering to EIA/TIA-232 and ITU-T V.28 standards. It has a receiver hysteresis of 500mV and is suitable for industrial applications.



The SP232AEN-L/TR comes in a 16-pin SOIC N package with surface mount installation and gull-wing termination. Its dimensions are 9.9mm in length, 3.9mm in width, and 1.65mm in height. The operating temperature range is from 0°C to 70°C.



This component is RoHS3 compliant and has an MSL rating of 1.

SP232AEN-L/TR Quick Information

Product Type: RS-232 Interface IC
Series: SP232A
Canonical Name: SP232AEN-L/TR Dual Transmitter/Receiver RS-232
Subcategory: RS-232 Interface IC

SP232AEN-L/TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

SP232AEN-L/TR Estimated Pricing

Qty Low High
1+ $2.20 $2.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

SP232AEN-L/TR Features

  • Dual transmitter/receiver RS-232 interface.
  • Operates on a single 5V supply.
  • Supports 240Kbps data rate.
  • 16-pin SOIC N surface mount package.
  • RoHS3 compliant.

SP232AEN-L/TR Applications

  • Suitable for serial data communication.
  • Used in RS-232 interface designs.
  • Applicable in industrial control systems.
  • Integrated into data acquisition equipment.
  • Utilized in embedded communication modules.

SP232AEN-L/TR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the data rate of the SP232AEN-L/TR?

The data rate of the SP232AEN-L/TR is 240 Kbps.

What interfaces does the SP232AEN-L/TR support?

The SP232AEN-L/TR supports EIA/TIA-232 and ITU-T V.28 interfaces.

What is the supply voltage range for the SP232AEN-L/TR?

The supply voltage range for the SP232AEN-L/TR is 4.5 V to 5.5 V.

What is the operating temperature range for the SP232AEN-L/TR?

The operating temperature range for the SP232AEN-L/TR is 0°C to 70°C.

What is the package type of the SP232AEN-L/TR?

The package type of the SP232AEN-L/TR is 16-SOIC N.

How many drivers and receivers does the SP232AEN-L/TR have?

The SP232AEN-L/TR has 2 drivers and 2 receivers.

What is the receiver hysteresis of the SP232AEN-L/TR?

The receiver hysteresis of the SP232AEN-L/TR is 500 mV.
