| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,260 pcs
|
2260 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Current | |
| Data Rate | |
| Description/Function | |
| Dimensions | |
| Failure Rate | |
| Frequency | |
| HTS Code | |
| Interface Type | |
| Memory Size | |
| Modulation | |
| Mounting Type | |
| Operating Supply Voltage | |
| Operating Temperature | |
| Operating Temperature (Minimum/Maximum) | |
| Output Power | |
| Power | |
| Product Type | |
| RF Family | |
| Serial Interfaces | |
| Subcategory | |
| Supply Current Receiving | |
| Supply Current Transmitting | |
| Tape & Reel | |
| Utilized IC | |
| Voltage |

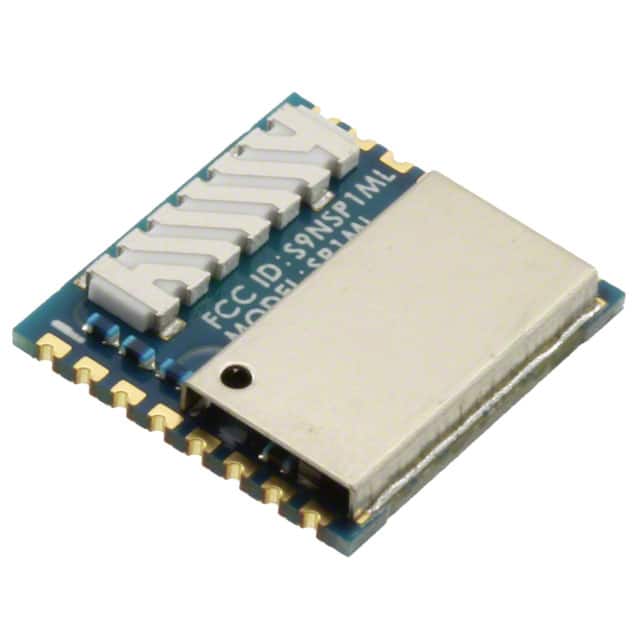

The STMicroelectronics SP1ML-868 is a versatile Sub-GHz transceiver module designed for general ISM applications operating below 1GHz. This module features an integrated chip antenna and operates at a frequency of 868MHz, offering an output power of 11.6 dBm. It supports a wide operating supply voltage range from 1.8V to 3.6V, with typical supply currents of 20mA for transmitting and 13.5mA for receiving.
Connectivity is provided via SPI and UART serial interfaces, enabling seamless integration into various embedded systems. The module supports multiple modulation schemes including 2-FSK, ASK, GFSK, GMSK, and OOK, and offers a data rate of up to 500kbps. It is equipped with 128kB Flash and 16kB RAM memory.
The SP1ML-868 is designed for surface mount installation and comes in a compact 16-SMD Module package measuring 14mm x 13.4mm x 2.5mm. It operates reliably within a temperature range of -40°C to +85°C, making it suitable for demanding environmental conditions. This module is part of the Sp1ml series and utilizes the SPIRIT1 IC.
Key specifications include its low power consumption, flexible interface options, and integrated antenna, making it an ideal choice for wireless communication applications requiring efficient and reliable RF performance.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.06 | $6.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating supply voltage is 3V.
The operating temperature range is -40°C to +85°C.
The RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
The module operates at 868MHz.
The output power is 11.6 dBm.
It supports SPI and UART interfaces.
