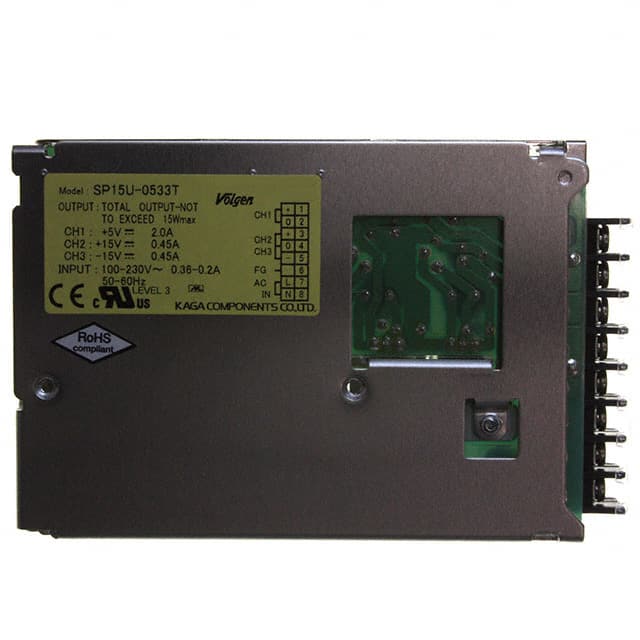

This Kaga Electronics USA SP15U-0533T AC/DC converter delivers 15W of power with multiple output voltages: 5V, +15V, and -15V. It is designed for universal input, accepting AC voltages from 85 to 264V and DC input from 110 to 340V, making it suitable for global applications.
The converter operates within a temperature range of 0°C to 60°C with derating. It offers built-in over-voltage and over-current protection for the 5V output. Key electrical specifications include a line regulation of 0.4%, load regulation of 1% for all outputs, and a ripple noise of 150 mVp-p.
With a chassis mount type, this enclosed unit is designed for integration into systems for ITE (Commercial) applications. It meets approval standards from CE, cUL, TUV, and UL. The unit has an efficiency rating of 73% and an MTBF of 200,000 hours.
85-264 VAC.
Chassis mount enclosed package, 107.0 x 75.0 x 33.0 mm.
0°C to 60°C with derating above 50°C.
5V at 2A, +15V at 450mA, -15V at 450mA.
Over-voltage protection on all outputs and over-current protection on the 5V output.
3000 VAC primary to secondary, 1500 VAC primary to case, 500 VAC secondary to case.
