| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,000 pcs
|
9000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Applications | |
| Bidirectional Channels | |
| Capacitance | |
| Capacitance @ Frequency | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Power Line Protection | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage |

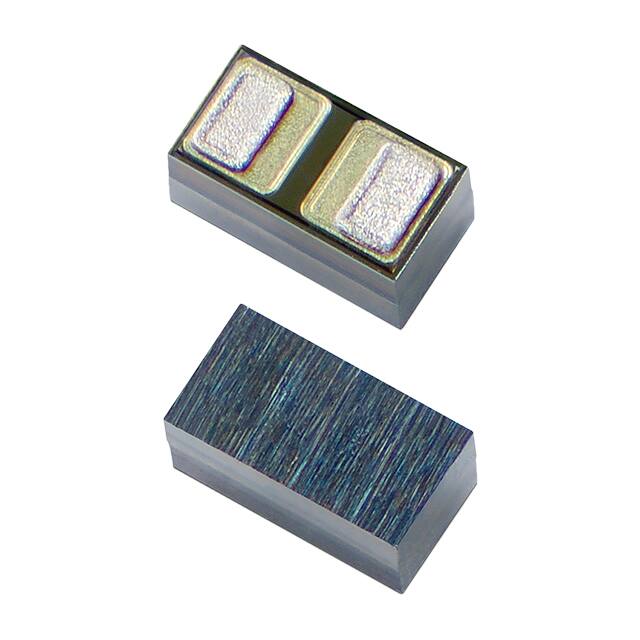

The SP15-01WTG-C-HV is a bidirectional Zener TVS diode designed for general purpose transient voltage suppression. It provides protection against voltage spikes with a maximum reverse standoff voltage of 15V and a clamping voltage of 27V at 5A peak pulse current (8/20µs). The device is rated for 100W peak pulse power. Low capacitance of 21pF at 1MHz makes it suitable for high-speed signal lines. The device is surface mount in a 2-XFDFN, FCDFN package (2-FlipChip). Operating temperature range is -40°C to 125°C. It is not intended for power line protection. This TVS diode is RoHS3 compliant and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.37 | $0.37 |
| 10+ | $0.23 | $0.23 |
| 100+ | $0.14 | $0.14 |
| 500+ | $0.11 | $0.11 |
| 1,000+ | $0.08 | $0.08 |
| 2,500+ | $0.08 | $0.08 |
| 5,000+ | $0.08 | $0.08 |
| 10,000+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
15V.
27V maximum.
5A (8/20µs).
2-XFDFN, FCDFN (2-FlipChip).
Yes, it has 1 bidirectional channel.
21pF at 1MHz.
-40°C to 125°C.
