| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Air Flow | |
| Approval Agency | |
| Bearing Type | |
| Fan Type | |
| Lead Style | |
| Noise | |
| Operating Temperature | |
| Power (Watts) | |
| RPM | |
| Static Pressure | |
| Termination | |
| Voltage | |
| Weight | |
| Width |

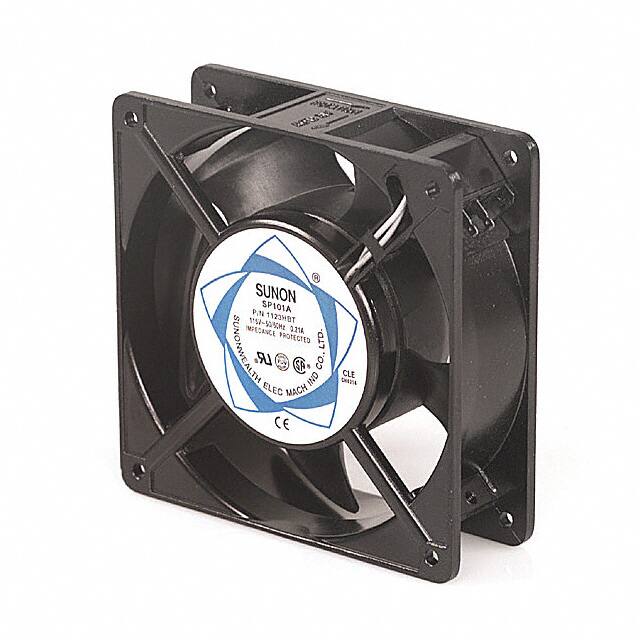

This SUNON SP101A-1123HBT is an AC axial fan designed for cooling applications. It operates at 115VAC and delivers an airflow of 107.0 CFM (3.00 m³/min) at a speed of 3050 RPM.
The fan has a square frame measuring 120mm in length and 120mm in height, with a width of 38.00mm. It is equipped with ball bearings for durability and a noise level of 50.0 dB(A). The operating temperature range is from -10°C to 70°C.
This component is terminated with 2 terminals and has received certifications from CSA, TUV, and UL. It has a static pressure rating of 79.7 Pa and consumes 18.00W of power. The part is identified by the distributor part number 259-1094-ND.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
115VAC.
-10 to 70°C.
107 CFM (3.00 m³/min).
50.0 dB(A).
3050 RPM.
79.7 Pa.
Ball bearing.
