| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,557 pcs
|
10557 pcs | On Request | 1 | On Request | On Request | 15+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Bidirectional Channels | |
| Capacitance @ Frequency | |
| Clamping Voltage | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Power Line Protection | |
| SVHC Present | |
| Supplier Device Package | |
| Type | |
| Voltage |

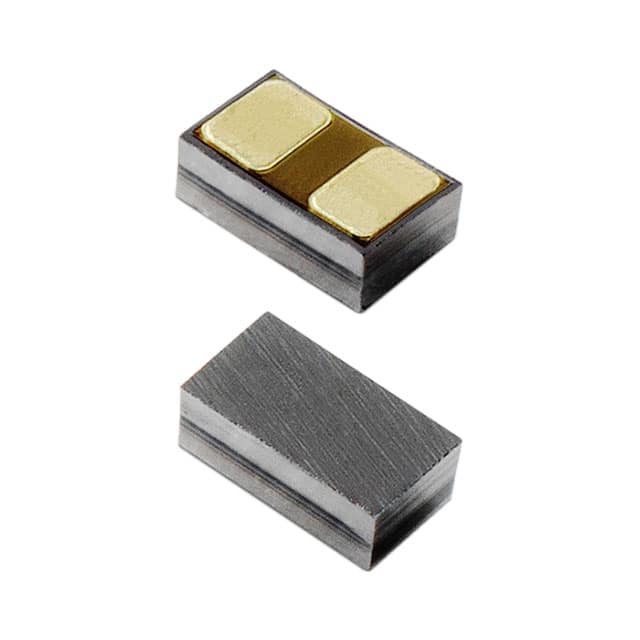

The SP1013-01WTG is a bidirectional Zener TVS diode designed for general purpose transient voltage suppression. It features a standoff voltage of 5V and a clamping voltage of 9.5V, providing protection for low-voltage circuits. The device can handle peak pulse currents up to 2A under an 8/20µs waveform.
With a capacitance of 30pF at 1MHz, it is suitable for high-speed signal lines where minimal loading is required. The operating temperature range spans -40°C to 125°C, allowing use in a wide variety of environments.
The diode is housed in a compact 0201 (0603 Metric) surface mount package with a 2-FlipChip supplier package, making it ideal for space-constrained designs. It is mounted using standard surface mount technology and supports automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.55 | $0.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The standoff voltage is 5V.
The clamping voltage is 9.5V.
The peak pulse current is 2A under an 8/20µs waveform.
It comes in a 0201 (0603 Metric) surface mount package with a 2-FlipChip supplier package.
The capacitance is 30pF at 1MHz.
The operating temperature range is -40°C to 125°C.
Yes, it has one bidirectional channel.
