| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,150 pcs
|
6150 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,184 pcs
|
3184 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Power Line Protection | |
| Reverse Standoff Voltage | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Unidirectional Channels | |
| Voltage |

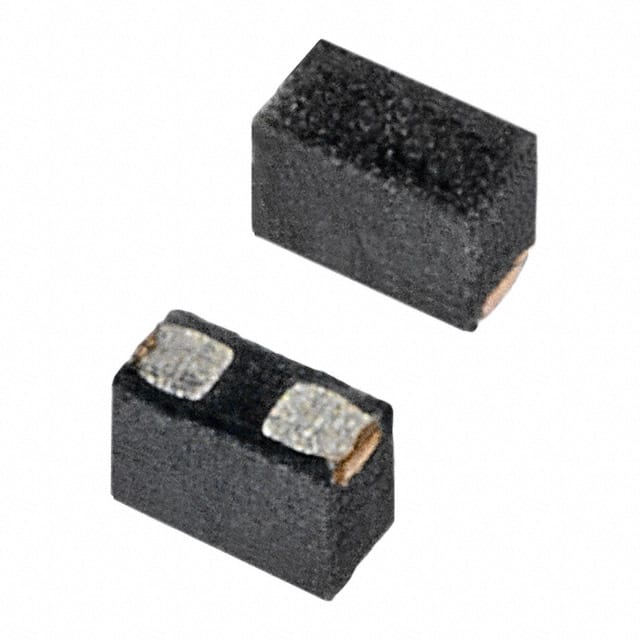

The SP1006-01UTG is a unidirectional TVS (transient voltage suppression) diode manufactured by Littelfuse Inc. It is designed to protect sensitive electronic circuits from voltage transients and electrostatic discharge (ESD) events.
This device features a reverse standoff voltage of 6V and a clamping voltage of 9.2V, ensuring that downstream components are protected from overvoltage conditions. It can handle a peak pulse current of 5A under an 8/20µs waveform, making it suitable for general-purpose transient protection applications.
The SP1006-01UTG is housed in a compact 0201 (0603 Metric) surface-mount package with a 2-uDFN supplier device package. It operates over a temperature range of -40°C to 125°C (junction temperature). The component is RoHS3 compliant and has an MSL rating of Level 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.46 | $0.46 |
| 10+ | $0.30 | $0.30 |
| 100+ | $0.18 | $0.18 |
| 500+ | $0.14 | $0.14 |
| 1,000+ | $0.11 | $0.11 |
| 2,500+ | $0.10 | $0.10 |
| 5,000+ | $0.09 | $0.09 |
| 10,000+ | $0.08 | $0.08 |
| 15,000+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The reverse standoff voltage is 6V.
The clamping voltage is 9.2V.
The peak pulse current is 5A under an 8/20µs waveform.
It comes in a 0201 (0603 Metric) surface-mount package with a 2-uDFN supplier device package.
Yes, it is listed as RoHS3 compliant (unverified).
The operating temperature range is -40°C to 125°C (junction temperature).
