| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
39,700 pcs
|
39700 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Bidirectional Channels | |
| Current | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Power Line Protection | |
| Reverse Standoff Voltage | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Type | |
| Voltage |

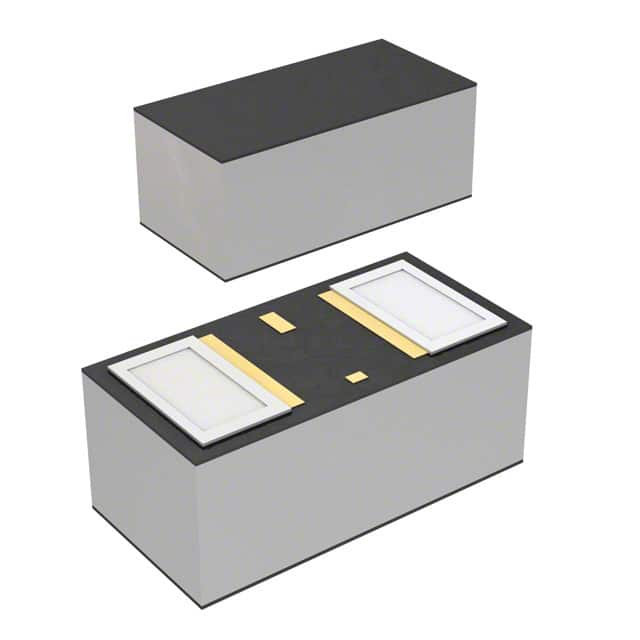

The SP1005-01WTG is a bidirectional Zener TVS diode designed for general purpose circuit protection. It features a reverse standoff voltage of 6V and a maximum clamping voltage of 15.6V at a peak pulse current of 10A (8/20µs waveform). The device operates over a junction temperature range of -40°C to 125°C.
This TVS diode is suitable for protecting sensitive electronics from voltage transients. Its bidirectional polarity allows it to clamp both positive and negative surges. The component is surface mountable and comes in a 0201 (0603 metric) package with a 0201 FlipChip supplier device package.
With a single channel configuration, the SP1005-01WTG is ideal for space-constrained applications requiring robust ESD or surge protection. The Zener technology ensures fast response to overvoltage events. Power line protection is not provided, so it is intended for signal line protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.46 | $0.46 |
| 10+ | $0.30 | $0.30 |
| 100+ | $0.18 | $0.18 |
| 500+ | $0.14 | $0.14 |
| 1,000+ | $0.11 | $0.11 |
| 2,500+ | $0.10 | $0.10 |
| 5,000+ | $0.09 | $0.09 |
| 10,000+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6V.
Maximum 15.6V at 10A peak pulse current (8/20µs).
10A (8/20µs pulse).
0201 (0603 metric) with 0201 FlipChip supplier device package.
Yes, it is a bidirectional TVS diode.
-40°C to 125°C (junction temperature).
Surface mount.
